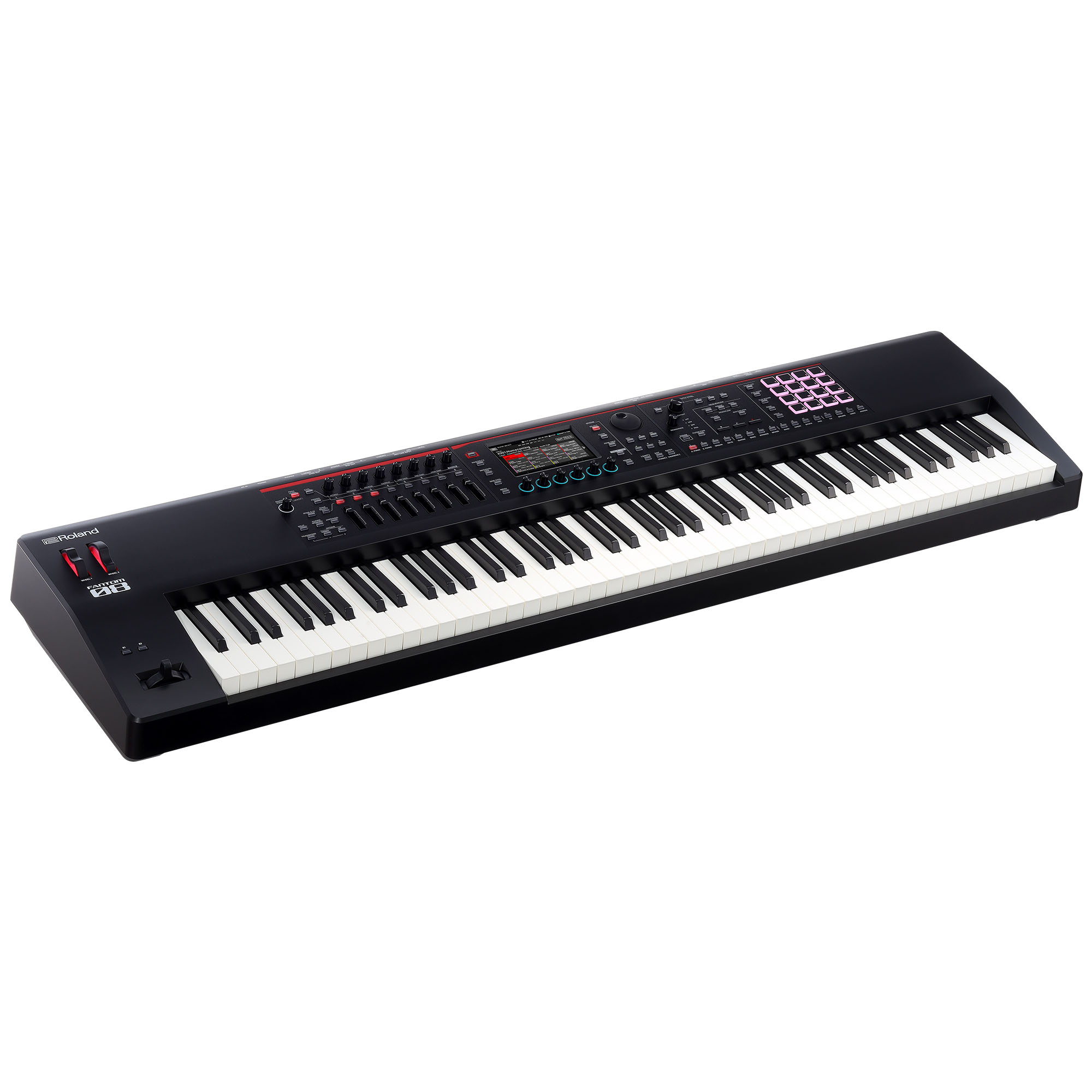

Roland FANTOM-08

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Roland Fantom-08 - Workstation - Main picture
  • Roland Fantom-08 - Workstation - Variation 1
  • Roland Fantom-08 - Workstation - Variation 2
  • Roland Fantom-08 - Workstation - Variation 3
  • Roland Fantom-08 - Workstation - Variation 4
  • Roland Fantom-08 - Workstation - Variation 5
  • Roland Fantom-08 - Workstation - Variation 6
  • Roland Fantom-08 - Workstation - Variation 7
  • Roland Fantom-08 - Workstation - Variation 8
  • 1999.00 €
  • Ref : 102137
1659,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
In stock
deliverable in 24 hours
Stock in store
See availability. Store
Star's Music Bordeaux
Star's Music Bruxelles
Star's Music Lille
Star's Music Lyon
Star's Music Paris
Star's Music Toulouse

The brand Roland

Learn more about the Roland brand and discover the entire catalog.

Synthetizer and drum machine buying guide

Synthetizer and drum machine buying guide

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Workstation

The FANTOM-08 unifies your creative world by combining the sonic power and smooth operation of the elite FANTOM line in a sleek instrument that can follow you on all your musical journeys. Play and produce with Roland's best sounds, and bring your musical ideas to life from the same physical controllers, colour touchscreen, and detailed software integration as our top-of-the-line models.
Lire la suite

Technical sheet

  • Number of keys 88 keys
  • Touch Heavy touch
  • -Parts
  • 16 zones (Internal + External)
  • -Scenes
  • 128 scenes x 4 bank
  • * The Scenes can import and export.
  • -Tones
  • 3,500 tones or greater
  • 90 Drum kits or greater
  • -Tone Remain
  • 8 zones
  • * When "Scene Remain Switch" enabled.
  • Tone Remain does not apply to VTW Organ sounds.
  • -Favorite
  • Rating System: 4 steps (0-3)
  • -Tone Search/Scene Search
  • Rating, Character
  • -Effects
  • Multi-Effects: 16 systems, 90 types
  • Part EQ: 16 systems
  • Drum Part COMP: 6 systems
  • Insertion Effect: 2 systems, 90 types (Serial/Parallel connection selectable)
  • TFX: 1 system, 90 types
  • Input MFX: 1 system, 90 types
  • Chorus: 9 types
  • Reverb: 7 types
  • Master Compressor
  • Input Reverb: 7 types
  • Input EQ: 1 system
  • -Vocoder
  • Band: 13, 20, 32
  • Type: Mono, Stereo
  • Preset Setting: 10
  • User Setting: 20
  • -Scene Chain
  • Chain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set
  • Set: 100
  • Marker: 36 (0-9, A-Z, a-z) per 1 Chain Set
  • -Sequencer
  • MIDI Tracks: 16
  • Group:16
  • Pattern: 8 (per each track)
  • Pattern Length: 32 measures
  • Recording Method: Realtime recording, Step recording, TR-REC
  • Editing Method: Piano roll edit (Touch Edit/Automation support), Microscope
  • Song: 1 (per Scene)
  • File format: Original, SMF export/import supported
  • * PAD Sampler trigger data can be recorded.
  • -Sampler
  • -Keyboard Multisample
  • Format: 16/24-bit linear, 44.1/48 kHz, WAV/AIFF
  • Number of Samples: 2,048
  • Number of Multisamples: 128
  • Sampling Time: The maximum is 2 minutes 44 second (1 Sample).
  • * A total of approximately 256 MB (Share with Expansion titles)
  • * Keyboard Multisample can import and export as ZEN-Core Tone.
  • -PAD Sampler
  • Format: 16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supported
  • Maximum Polyphony: 8
  • Number of Samples: 16 pads x 4 banks
  • Sampling Time: The maximum is 60 minutes (the equivalent of approximately 660 MB).
  • * A total of approximately 2 GB (including imported WAV files)
  • * When you use the PAD samples as KBD Wave, then you have to manipulation it.
  • -Internal Storage space for files
  • Size: 2 GB
  • -Others
  • -Rhythm Pattern
  • -Arpeggiator
  • -Chord Memory
  • -Motional Pad
  • -PAD Mode
  • Sample Pad,Note Pad,Partial Sw/Sel,DAW Control,Zone Mute,Zone Solo,Kbd Sw Group,Rhythm Pattern,Pattern,Variation Play,Group Play
  • -AIRA LINK
  • * When connect to MX-1
  • -Controllers
  • Pitch Bend/Modulation lever *1
  • Assignable Switch x 2 (S1/S2)
  • Control knob x 8
  • Slider x 8
  • Wheel x 2 *1
  • Function knob x 6
  • Sound Modified knob x 2 *1
  • 4 x 4 Pad
  • *1: 1,024 step editing support
  • It can be use with Cutoff, Resonance.
  • -Display

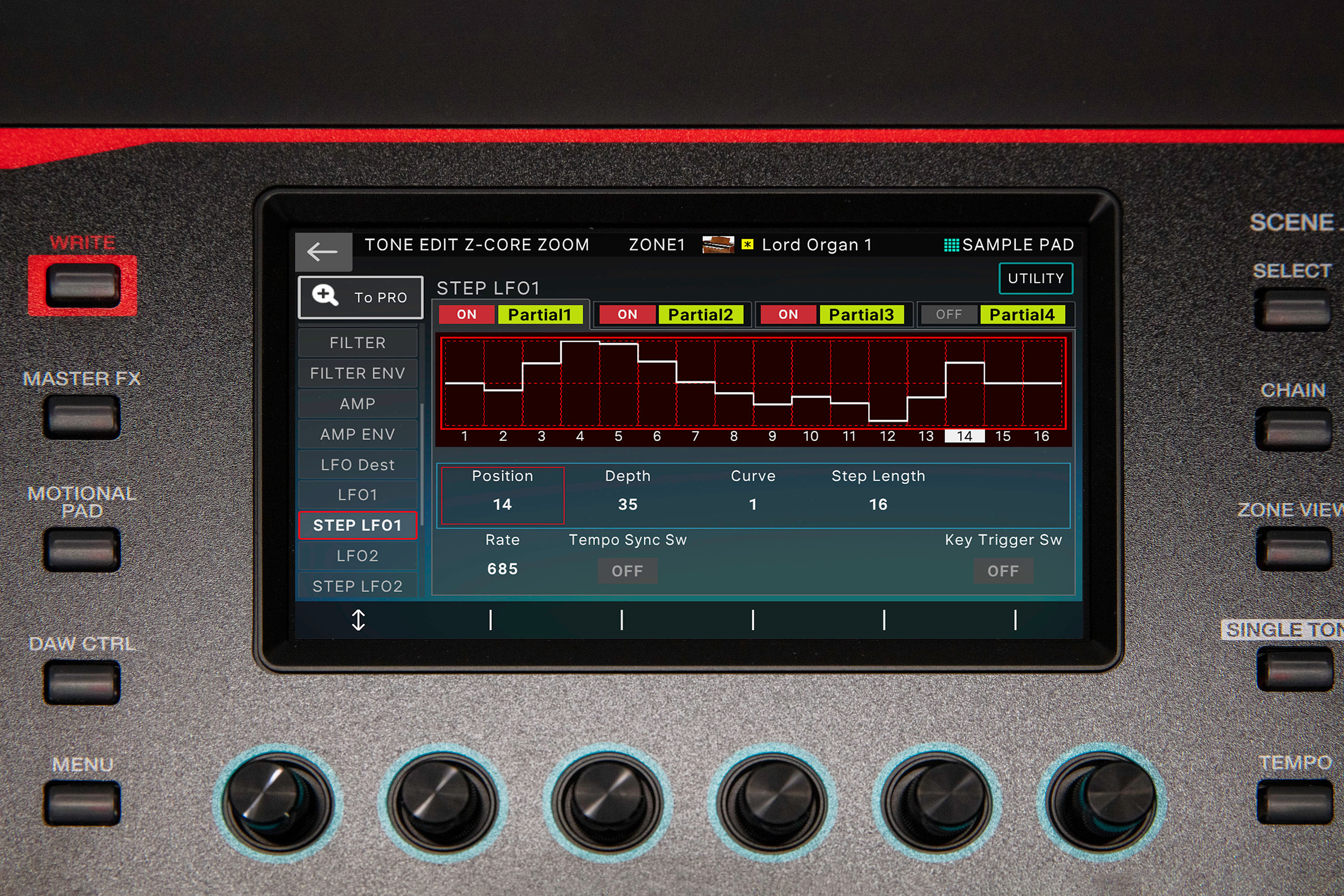

  • Graphic Type, 5.5" (1,280 x 720 dots), backlite LCD (Color/Touch screen, Screensaver, Wallpaper support)
  • -Connectors
  • Headphones jack: Stereo 1/4-inch phone type
  • MAIN OUT jacks (L/MONO, R) (1/4-inch TRS type)
  • SUB OUT jacks (L/MONO, R) (1/4-inch phone type)
  • SUB OUT STEREO (PHONES) jacks: Stereo miniature phone type PHONES Support
  • Mic Input jacks: 1/4 inch TRS type
  • Line Input jacks: (L/MONO,R) (1/4 inch phone type)
  • FOOT PEDAL jacks(HOLD, CTRL1, CTRL2)
  • MIDI connectors (IN, OUT)
  • USB MEMORY port
  • USB COMPUTER port (AUDIO/MIDI)
  • External Device Port: A Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected.
  • -Audio Interface
  • Max 24 bit/96 KHz
  • Record 16 Stereo Channel
  • Playback 2 Stereo Channel
  • -External Memory
  • USB Flash drive (sold separately)
  • -Power Supply
  • AC Adaptor
  • -Power Consumption
  • 1,300 mAh
  • Dimensions : 1,393 (W) x 354 (D) x 138 (H) mm
  • Poids : 14.8 Kg
More specifications
Fewer specifications
