Eq & enhancer effect pedal

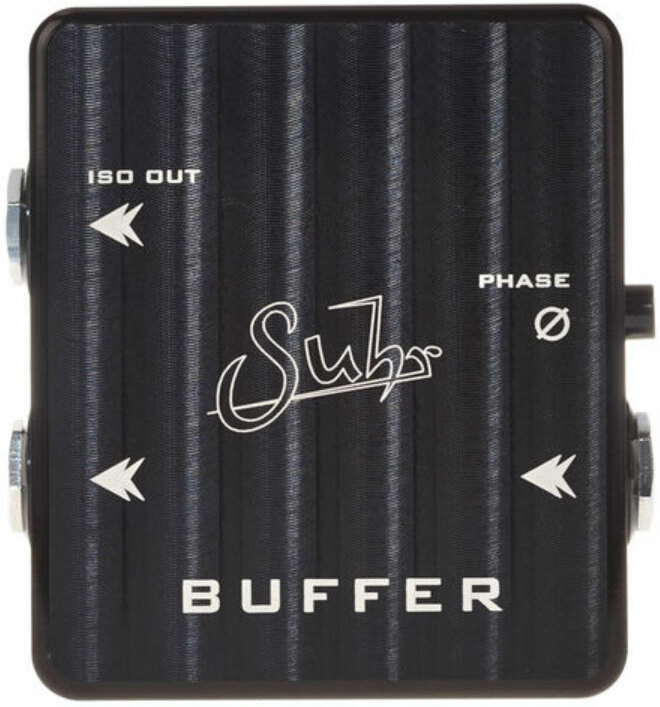

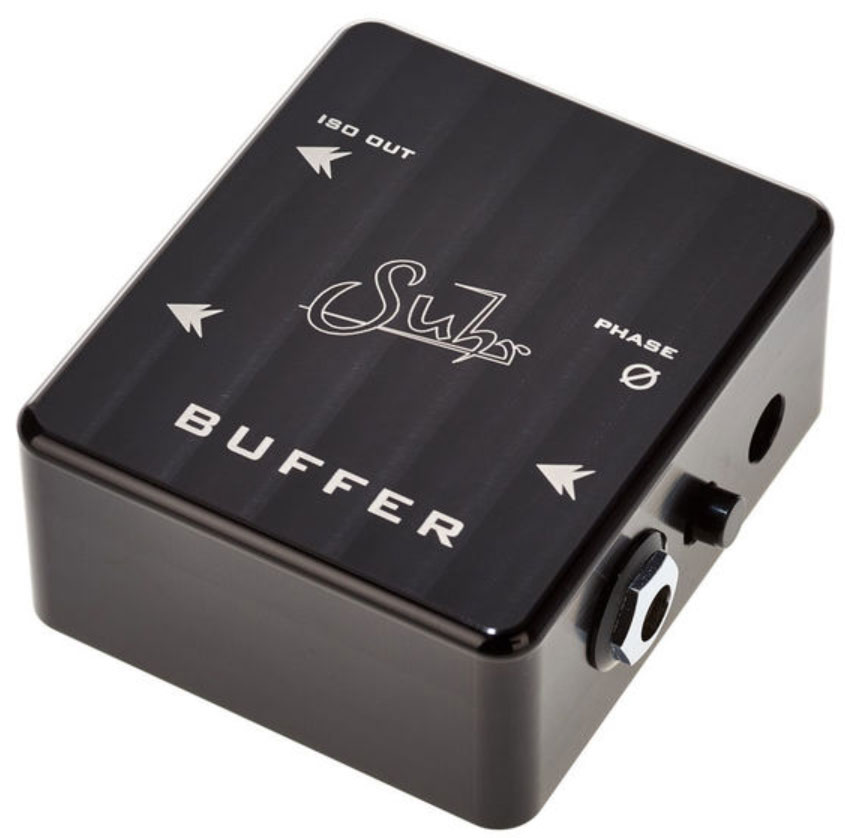

SUHR Buffer utilizes only the highest quality components such as low noise audiophile Op-Amps, Glass Epoxy PCB, and a machined billet aluminum enclosure.
It is a transparent signal buffer/line driver which is an essential tool designed to preserve your instrument’s tone : tone loss occurs as a result of signal degradation, commonly caused by long cable run, or the use of multiple instrument cables – such as you would find on a pedal board. To solve this, the Suhr Buffer employs unity buffering to reverse the effects of capacitance without affecting your instruments tone or output level.
Suhr recommend placing the Buffer as the first device in your signal chain. If you are using a vintage fuzz, place the Buffer after those devices to retain their character and relationship with your instrument’s electronics.
The Buffer is equipped with two independent outputs. One output (ISO) is isolated and utilizes a transformer to eliminate noise from ground looping, and features a 180º Phase Reversal switch to keep your signal in phase when splitting between two amplifiers.
It is a transparent signal buffer/line driver which is an essential tool designed to preserve your instrument’s tone : tone loss occurs as a result of signal degradation, commonly caused by long cable run, or the use of multiple instrument cables – such as you would find on a pedal board. To solve this, the Suhr Buffer employs unity buffering to reverse the effects of capacitance without affecting your instruments tone or output level.
Suhr recommend placing the Buffer as the first device in your signal chain. If you are using a vintage fuzz, place the Buffer after those devices to retain their character and relationship with your instrument’s electronics.
The Buffer is equipped with two independent outputs. One output (ISO) is isolated and utilizes a transformer to eliminate noise from ground looping, and features a 180º Phase Reversal switch to keep your signal in phase when splitting between two amplifiers.
Lire la suite
Technical sheet
- SUHR Buffer
- SKU 03-BUF-0001
- Buffer effect pedal
- Made in USA
- Instrument Input to connect to your instrument
- Primary output to connect to an amplifier or effect device
- Secondary output (transformer isolated) to split your instrument’s signal to an additional amplifier or sound source
- Phase Switch reverses the polarity of the Buffer’s ISO Output by 180º. Activate this switch to keep both output sources in phase
- Normal Out (non-reversed)
- Powered via optional 9 or 18Vdc adaptor, center negative, 2.1mm x 5.5mm
- Largeur 2.87" - 72.90 mm
- Profondeur 2.53" - 64.26 mm
- Hauteur 1.23" - 31.24 mm
- 0.379 lbs - 0.17 kg
- Manual : https://www.suhr.com/wp-content/uploads/2016/11/Buffer-Manual.pdf
