Kompressor limiter gate

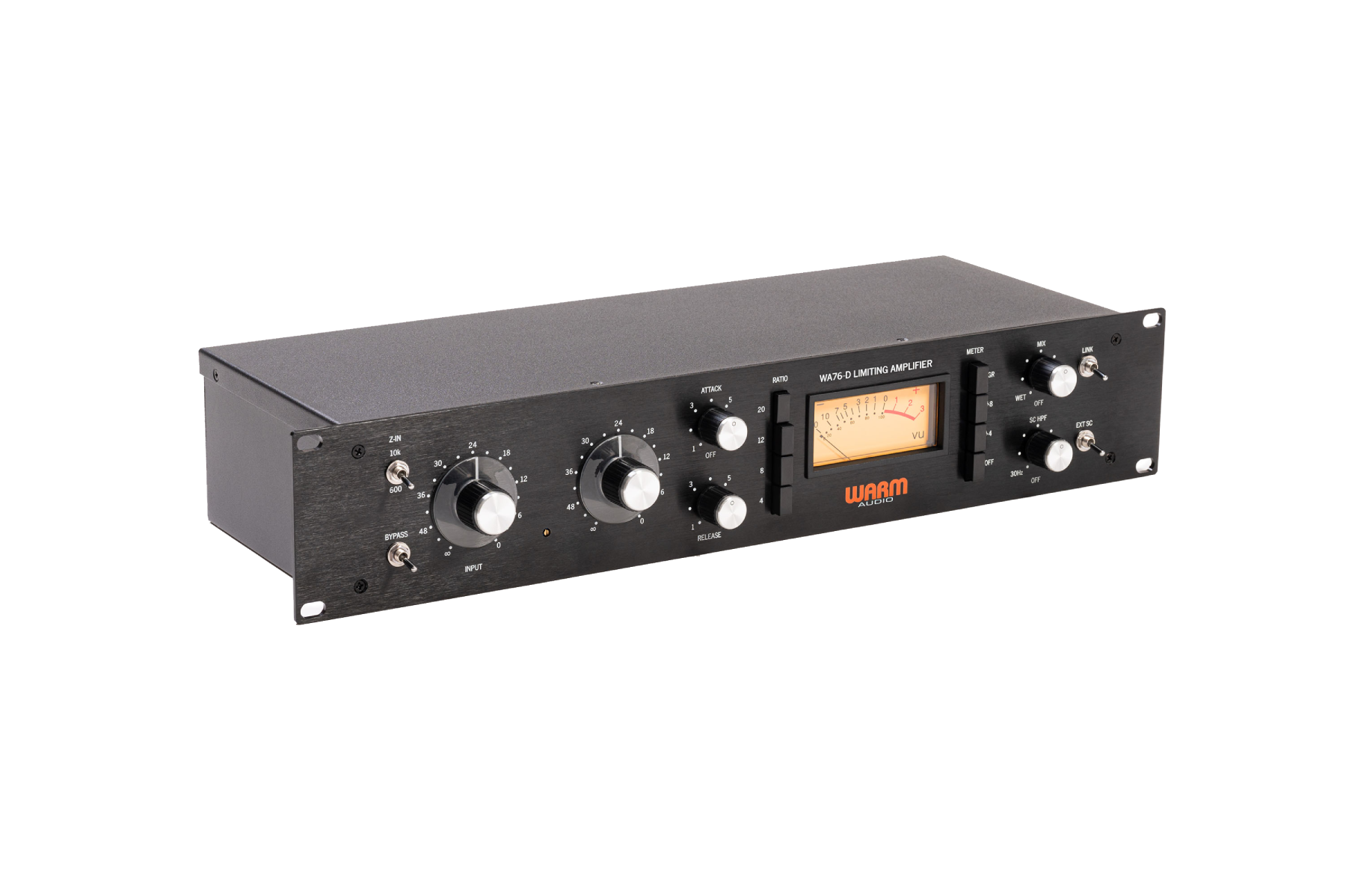

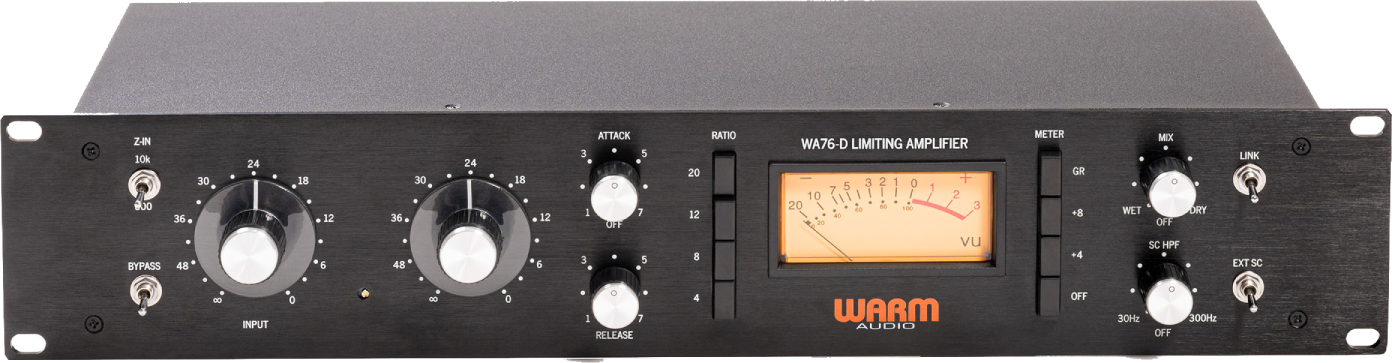

The WA 76-D is a faithful reproduction of the "Revision D" FET analog compressor with additional recording features offered by Warm Audio.

The WA76-A accurately reproduces one of the most legendary studio compressors, renowned for its generous headroom, lightning-fast dynamic control and rich sonic texture.

Using high-quality components such as CineMag's O-12 input and 5002 output transformers, the WA76-D reproduces the famous 76 Rev-D compression, known for its low-noise preamp and unique analog character.

Modern controls have been integrated, including parallel compression, bypass, input impedance selection and flexible sidechain options.

Ideal for adding a vintage touch to contemporary recordings, the WA76-A recreates the iconic sound embraced by artists and producers such as Chris Lord-Alge, Missy Elliott, Timbaland, Van Halen, Rick Rubin, and Daft Punk.

Technical sheet

Vumeter with options
- Gain reduction, +8 dB output, +4 dB output, "Off" mode to switch off the device.
Output amplifier
- Class A for optimum line level.
Signal path
- 100% discrete.
Transformers
- CineMag USA input and output transformers: models O-12 for input and 5002 for output.
Input impedance
- 600 Ω or 10 kΩ, selectable for compatibility with modern audio interfaces.
Signal mixing
- Mixing of dry and compressed signals.
High-pass filter
- Variable on the side-chain (30-300 Hz, 12 dB/octave slope).

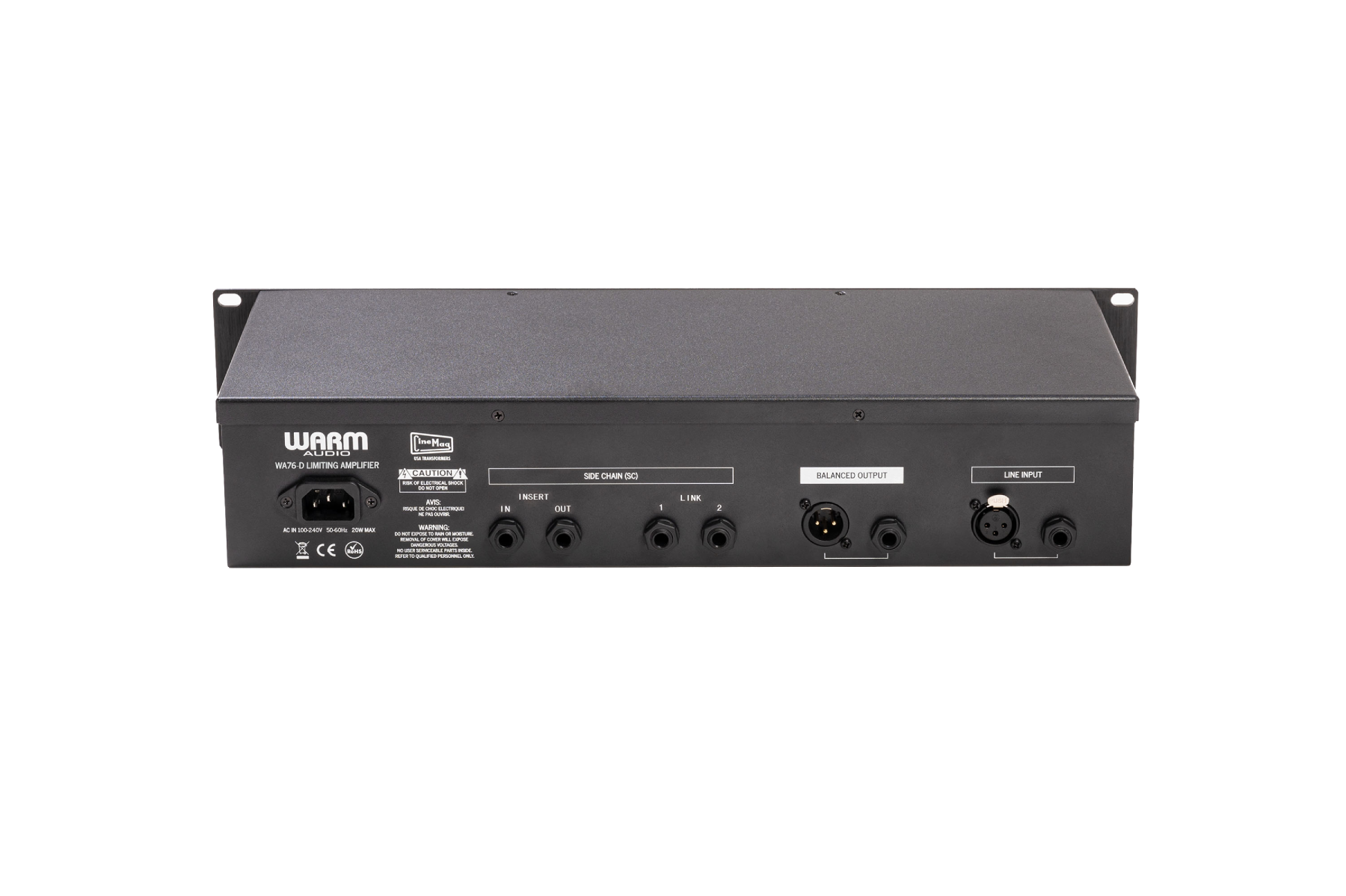

Inputs and insert
- Stereo link and insert inputs on 6.35 mm jack.
Bypass
- Active for use as a line amplifier, True Bypass option for A/B comparisons.
Attack and release times
- Adjustable attack time from 20 microseconds to 800 microseconds, release time from 50 ms to 1.1 s.
Compression ratios
- 4:1, 8:1, 12:1, 20:1, "All Buttons In" mode for limiter effect.
Frequency response
- ±1 dB from 20 Hz to 20 kHz.
Connections
- Balanced on XLR and TRS jack.
Maximum gain
- 53 dB.
Signal-to-noise ratio (SNR)
- 86 dB.
Total harmonic distortion (THD)
- -64 dB (at -18 dBu).
Format
- 19" 2U rack.
