Kompressor limiter gate

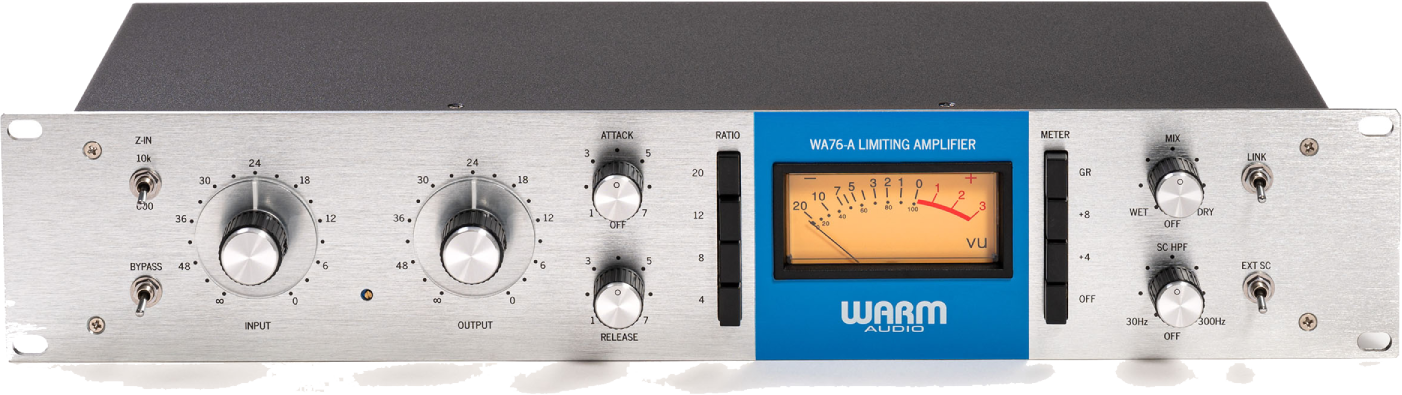

The WA76-A is an analog FET compressor from Warm Audio.

The WA76-A faithfully reproduces one of the fastest and most powerful studio compressors, renowned for its striking attack response, precise dynamics control and distinctive grain.

Using premium components such as CineMag O-12 (input) and 5002 (output) transformers, the WA76-A captures the essence of the “blue stripe” compression, renowned for its unmistakable analog grain of its preamp. Modern features have been added, including parallel compression, bypass, selectable input impedance and flexible side-chain options.

Ideal for adding a vintage touch to contemporary recordings, the WA76-A recreates the iconic sound of the studios frequented by Jack White, The Beatles, David Bowie, Led Zeppelin and many others.

Technical sheet

VU meter
- Options: gain reduction, +8 dB output, +4 dB output, "Off" mode for device deactivation
Output amplifier
- Class A line level
Signal path
- Fully discrete audio
Transformers
- CineMag USA input and output transformers (models O-12 input and 5002 output)
Input impedance
- Selectable: 600 Ω or 10 kΩ to optimize compatibility with modern audio interfaces
Mixing function
- Possibility of mixing dry and processed signals
High-pass filter
- Variable for side-chain: from 30 to 300 Hz, 12 dB/octave slope
Inputs and inserts
- Stereo link and insert inputs on 6.35 mm jacks
Bypass
- Active bypass for use as a line amplifier and True Bypass option for A/B comparison
Attack settings
- From 20 microseconds to 800 microseconds
Release settings
- From 50 ms to 1.1 s
Compression ratios
- 4:1, 8:1, 12:1, 20:1 and "All-Buttons-In" mode for limiting function
Frequency response
- ± 1 dB from 20 Hz to 20 kHz
Connections
- Balanced on XLR and TRS jacks
Total gain
- 58 dB
Signal-to-noise ratio (SNR)
- 84 dB
Total harmonic distortion (THD)
- -58 dB (at -18 dBu)
Format
- 19" 2U rack
