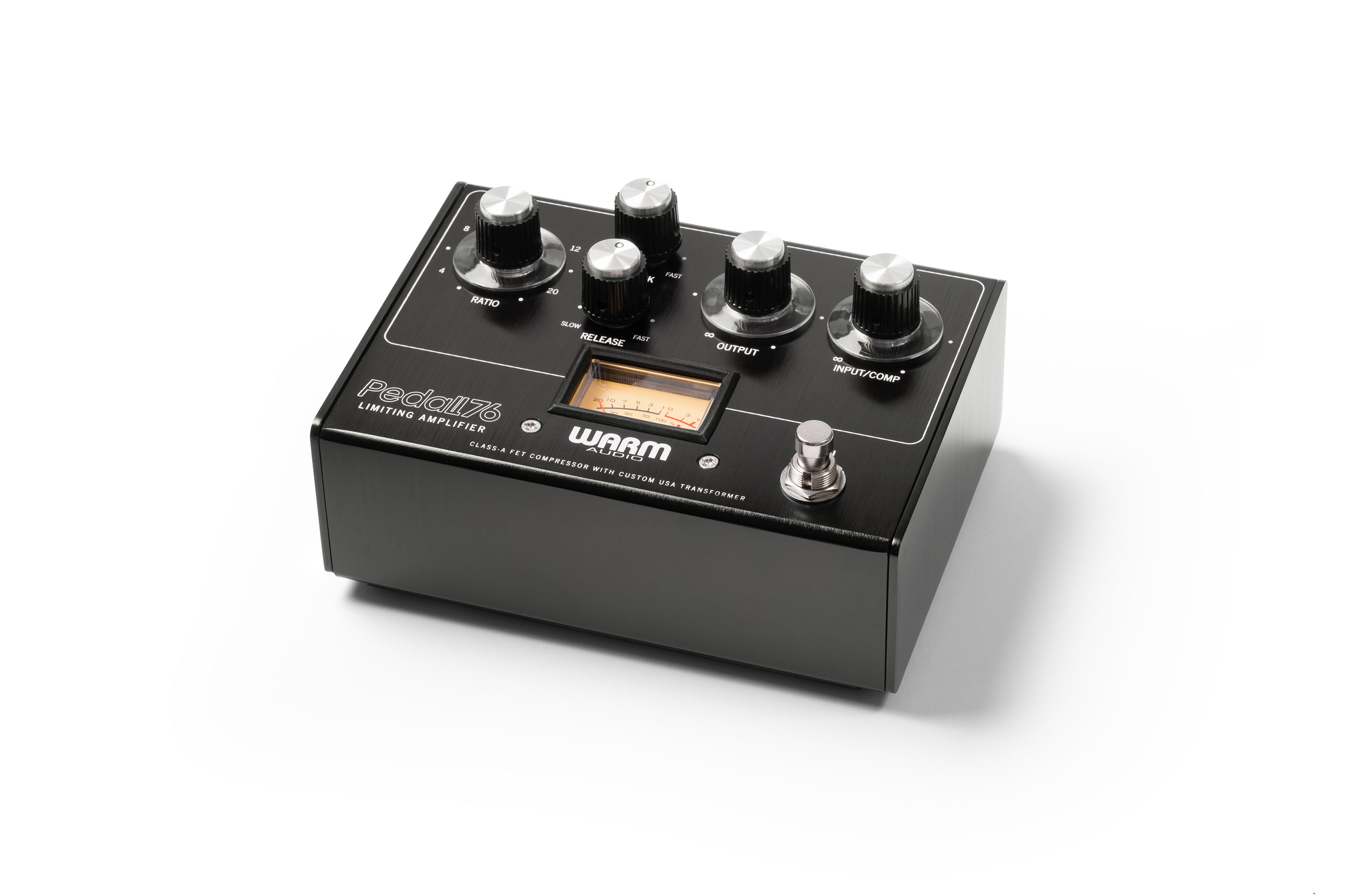

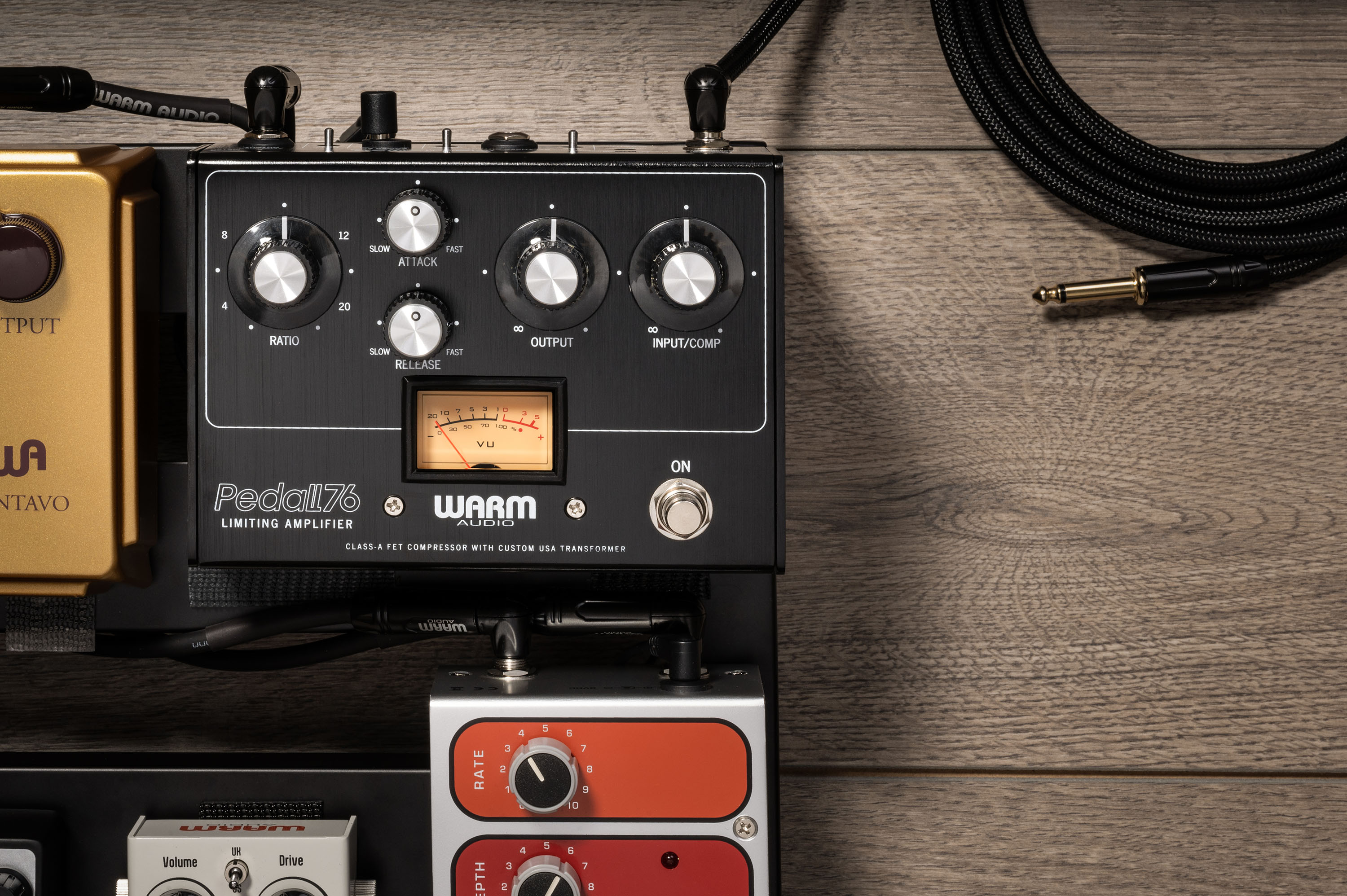

Compressor, sustain & noise gate effect pedal
The Pedal76 faithfully reproduces one of the fastest studio compressors ever conceived, preserving transients and adding punch and character. 100% analog, it incorporates components carefully selected to reproduce the performance of studio units. The Pedal76 delivers authentic FET compression, with the unique grain of FET and the sonic richness provided by its Cinemag output transformer. It has all the essential controls to recreate on stage the timeless sound of artists such as Jack White, John Mayer, Foo Fighters, Van Halen, Led Zeppelin and many others.
Lire la suite
Technical sheet
- for electric guitar Yes
- Fully analog FET compression pedal
- Balanced output with CineMag USA transformer (switched on with external power supply)
- Classic 76-type compression controls: Ratio, Attack, Release, Output and Input/Comp
- Additional rear panel controls: input sensitivity potentiometer, ground switch, Mic/Line level selector and saturation selector with DI output boost
- Bypass selector: "True Bypass" (direct bypass of all electronics) or "Buffered" (via a buffer circuit) - Vintage-style VU meter indicating gain reduction
- 100% discrete analog signal path guarantees excellent signal-to-noise ratio
- Power supply via external DC 9V block or 9V battery (external power supply exploits internal voltage boost via DC-DC voltage converter)
- Dimensions (mm): 150 x 104 x 48
- Weight: 300 g
