Analog mixing desk

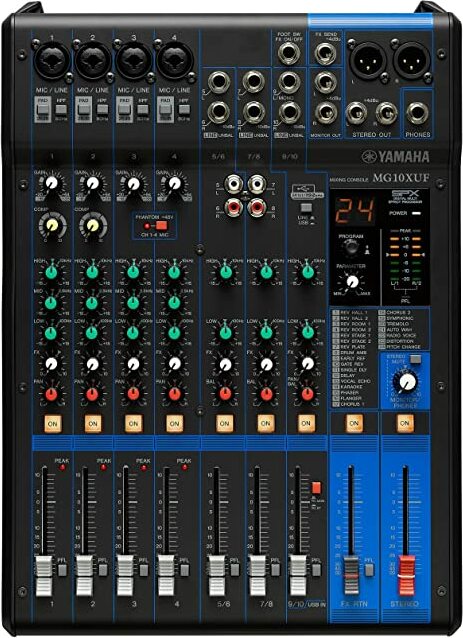

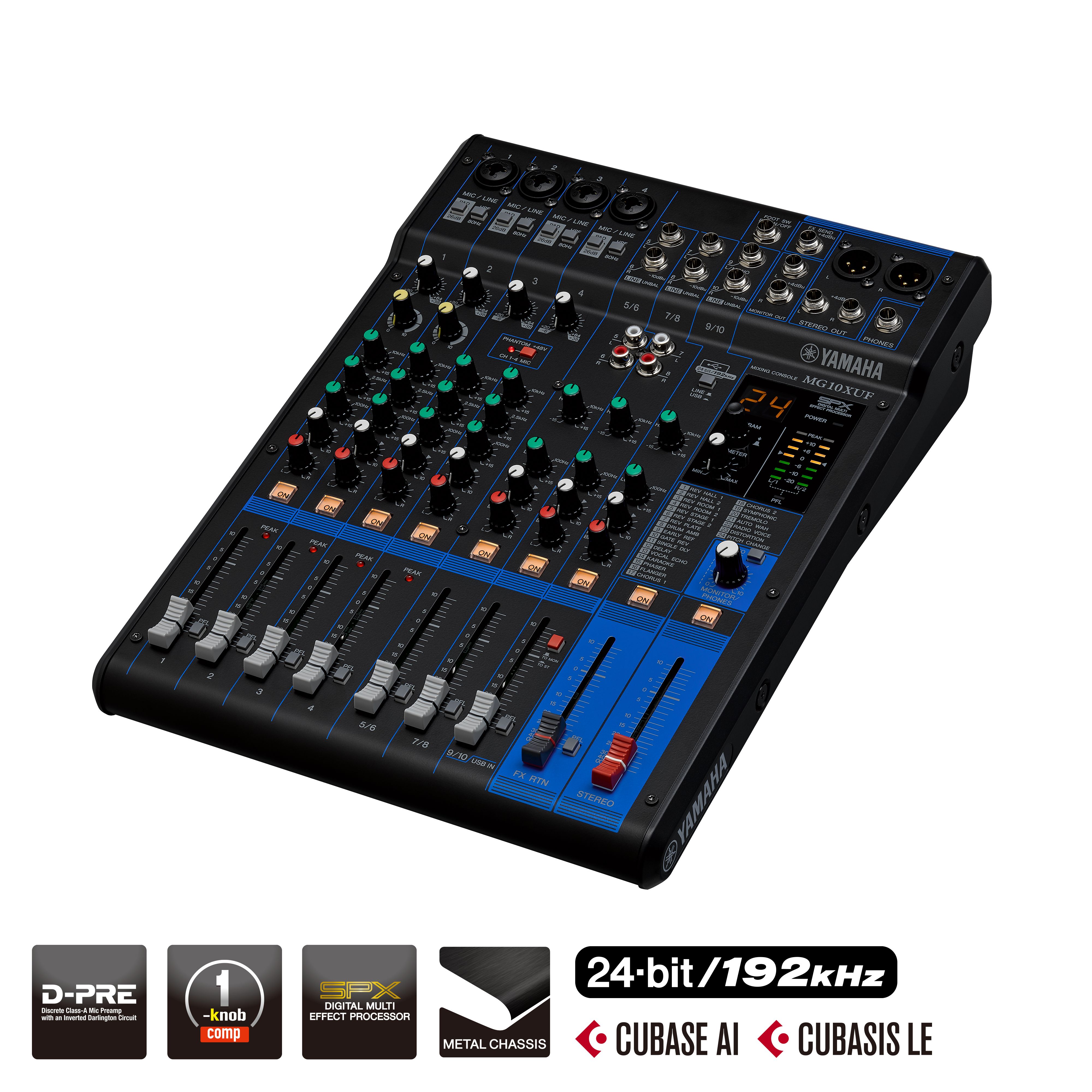

The Yamah Mg10XUF is an analog mixer with USB.

It incorporates studio quality D-PRE preamps, working in Class A and with discrete components. They use an inverted Darlington circuit, composed of two transistors arranged in a cascade.
The D-PRE preamps offer present and natural bass and soft and airy highs, very low distortion, and impressive bandwidth. This is enough to process signals from any audio source, without highlighting any part of the sound spectrum.
Equipped with a 26 dB attenuator (PAD), the input channels accept microphone or line level signals. The pad reduces the level of overly high signals picked up by microphones placed near loud instruments, preventing clipping - a phenomenon that can "dirty" your mix.
It includes a SPX yamaha SPX digital Multi-effect.

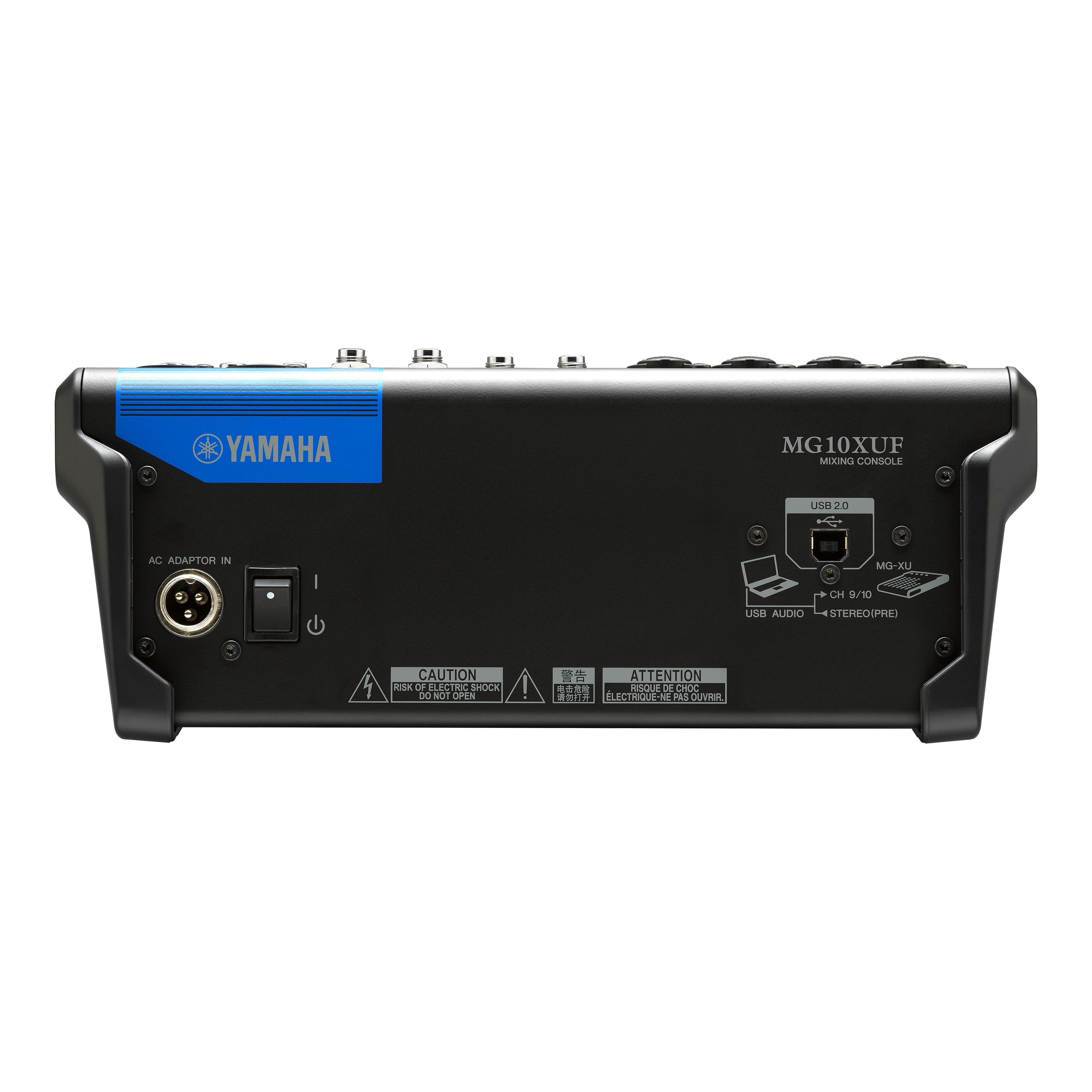

Usb port:
for quick and easy access to high-resolution audio content. Simply connect the console to your Mac, PC, or iPhone / iPad (2 or later) - in the latter case, using an Apple adapter "Camera Connection Kit" / "Lightning to USB Camera". The USB protocol ensures asynchronous data transfer: the audio data is referenced to a high-precision digital clock signal generated by the MG, which ensures high quality recording/playback.
Lire la suite

Technical sheet

  • Mixer connectivity USB
  • Number of channel mixing desk 10 to 22 channels
  • 10-Channel Mixing Console
  • Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
  • 1 Stereo Bus
  • 1 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • 24-bit / 192kHz 2in / 2out USB Audio functions
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
  • Includes Cubase AI DAW software download version
  • Cubasis LE for iPad available at App Store
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Metal chassis
  • Dimensions(W×H×D): 275 mm x 110 mm x 390 mm (10.8" x4.3" x15.4")
  • Net Weight: 3.3kg (7.3 lbs.)
