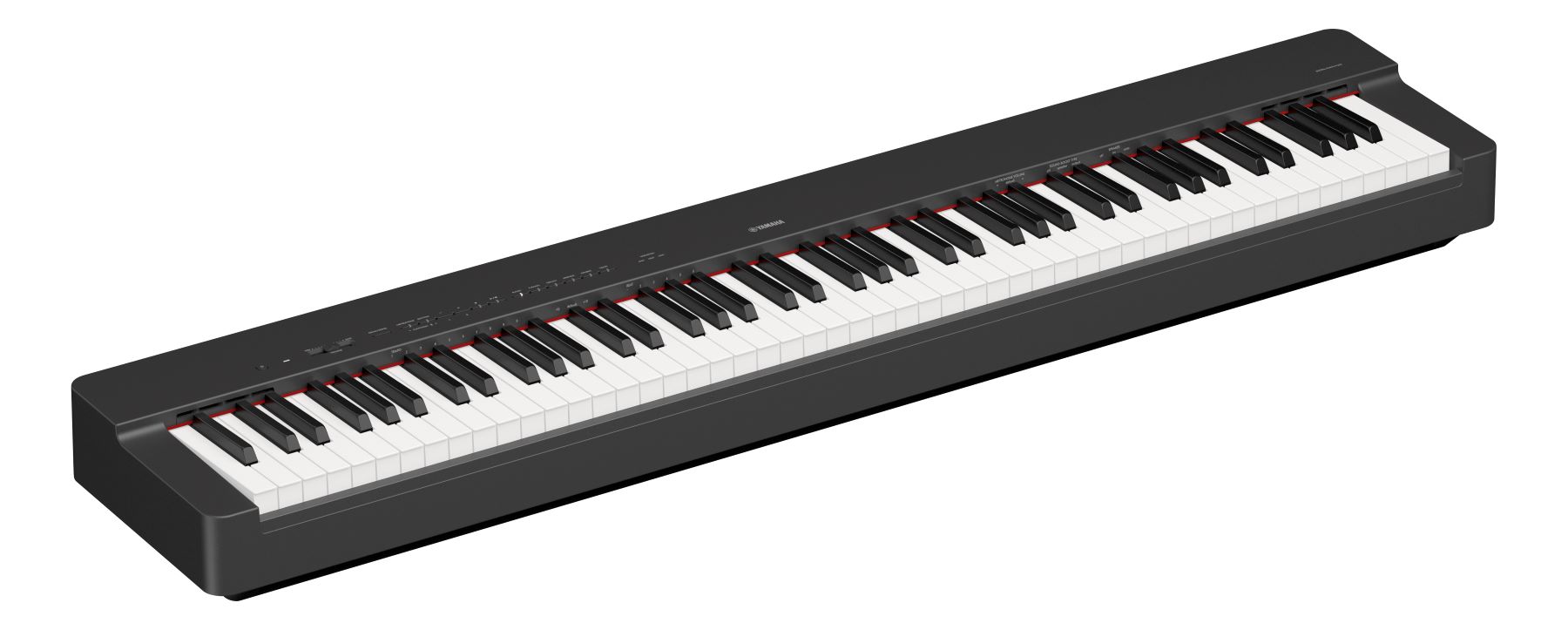

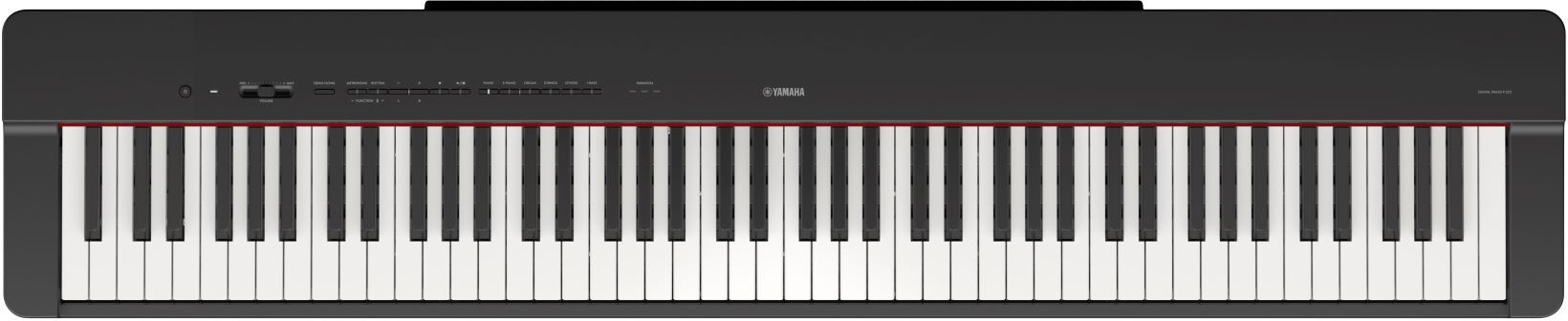

Yamaha P-223
- Read reviews (0)
- Similar products
The brand Yamaha
Learn more about the Yamaha brand and discover the entire catalog.
Digital Piano Buying Guide
Do you want to play the piano? Discover our buying guide to help you choose your digital piano.
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
88-key digital piano
Lire la suite
Technical sheet
- Dimensions and weight
- Width: 1,326 mm (52-3/16")
- Height: 129 mm (5-1/16")
- With desk: 327 mm (12-7/8")
- Depth: 272 mm (10-11/16")
- With desk: 362 mm (14-1/4")
- Weight: 11.5 kg (25 lb, 6 oz)
- With optional stand :
- Width: 1,326 mm (52-3/16")
- Height: 744 mm (29-5/16")
- With desk: 942 mm (37-1/16")
- Depth: 318 mm (12-1/2")
- With desk: 362 mm (14-1/4")
- Box dimensions: 1,424 mm x 233 mm x 362 mm (56-1/16" x 9-3/16" x 14-1/4")
- Control interface
- Keyboard: 88 keys, GHC with matt black keys
- Touch sensitivity: 4 levels (hard, medium, soft, fixed)
- Panel language: English
- Sounds
- Sound generator: Yamaha CFX
- Key release samples: Yes
- Virtual resonance modeling (VRM): Yes (VRM Lite)
- Pedal resonance: No
- Polyphony (max.): 192
- Preset voices: 24
- Effects
- Reverb: 4 types
- Wall EQ: Yes
- Intelligent Acoustic Control (IAC) : Yes
- Stereophonic optimizer : Yes
- Sound boost : 2 types
- Functions
- Dual/Layers: Yes
- Split: Yes
- Duo: Yes
- Songs
- Presets: 21 demos + 50 classics
- MIDI recording :
- Number of songs: 1
- Number of tracks: 2
- Capacity: approx. 100 KB/song (11,000 notes)
- Global controls
- Metronome: Yes
- Tempo range: 5 - 280
- Transposition: -6 to +6
- Tuning: 414.8 - 440.0 - 466.8 Hz (in 0.2 Hz increments)
- USB audio interface: 44.1 kHz, 24-bit, stereo
- Rhythms: 20 types
- Connectivity
- Headphones: 2 standard stereo jack outputs
- AUX output: [L/L+R], [R]
- USB TO HOST: Yes
- DC IN: 12 V
- Sustain pedal: Yes
- Pedal unit : Yes
- Amplifiers and Speakers
- Amplifiers: 7 W x 2
- Speakers: (Oval 12 cm x 8 cm + 5 cm) x 2
- Power supply
- AC adapter: PA-150B (or equivalent, DC 12 V, 1.5 A)
- Power consumption: 9 W
- Accessories
- Included: User manual, online product registration, music stand, sustain pedal, AC adapter (varies by region)

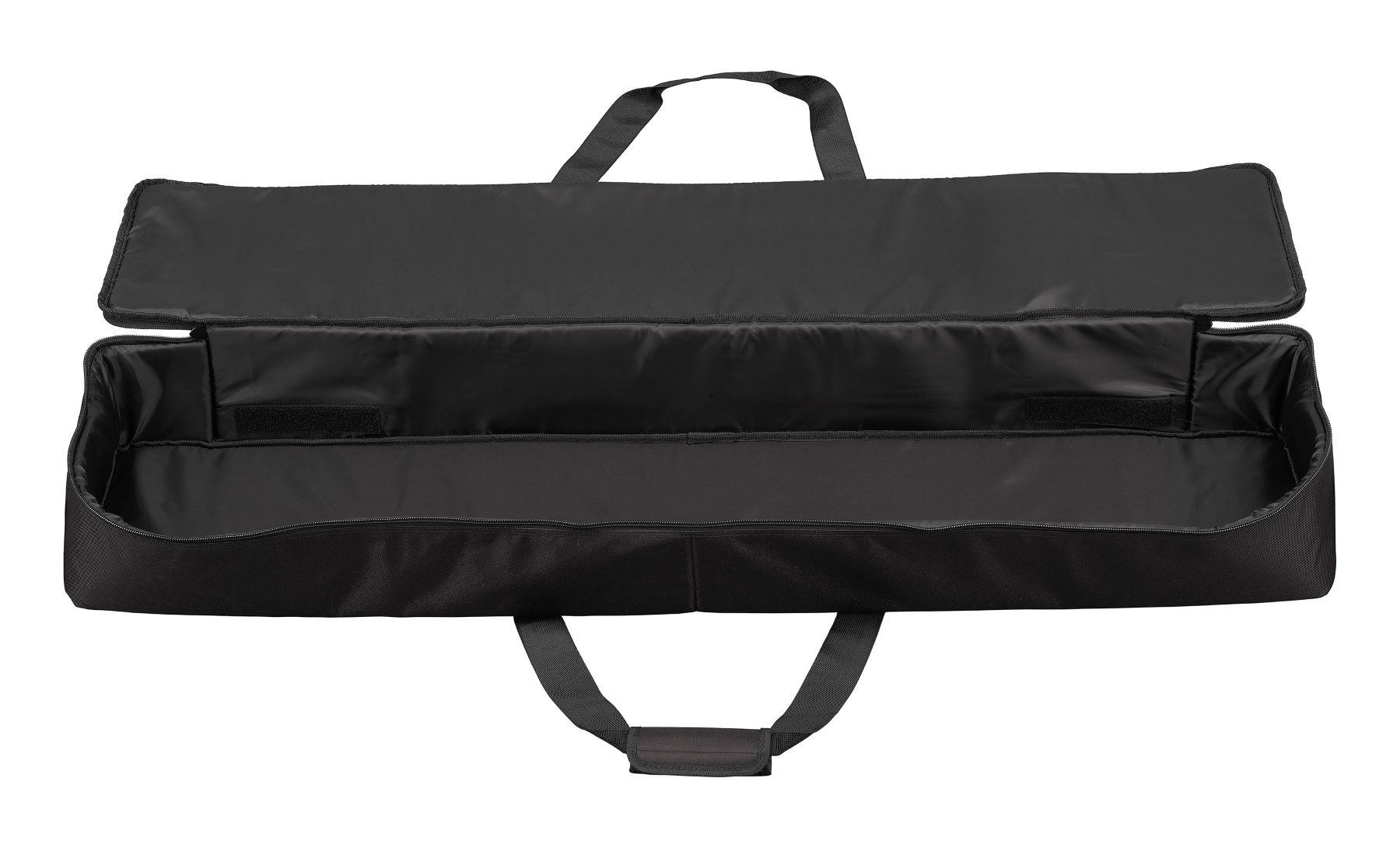

- Optional: Headphones (HPH-150/100/50), keyboard stand (L-100), pedal unit (LP-5A), sustain pedal (FC3A), switch pedal (FC4A/FC5), bag (SC-KB851), AC adapter (PA-150B), wireless MIDI adapter (UD-BT01)
