Portable recorder

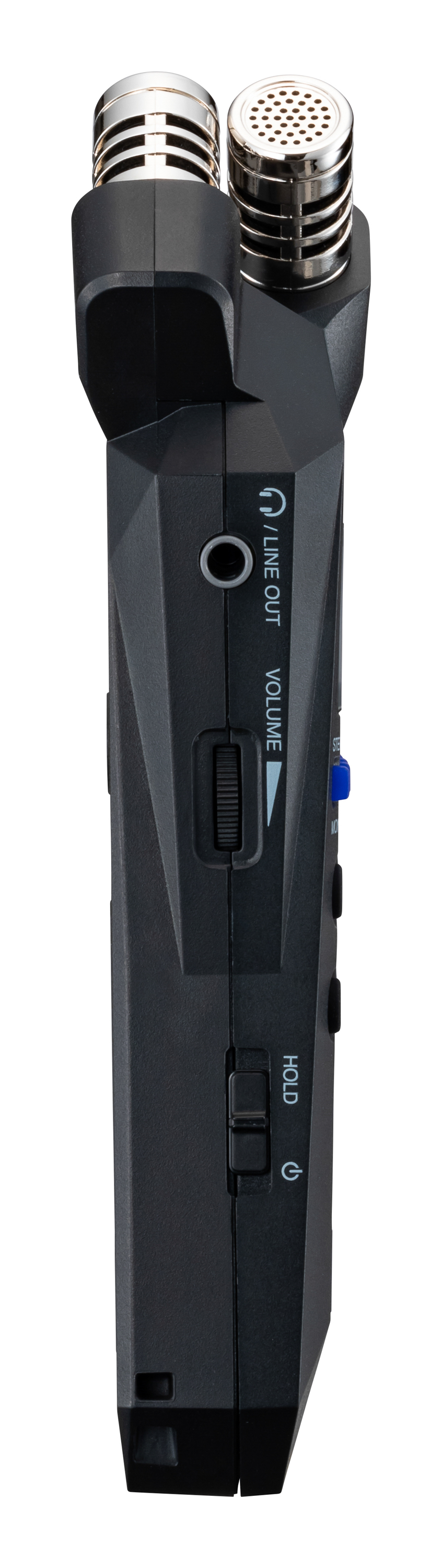

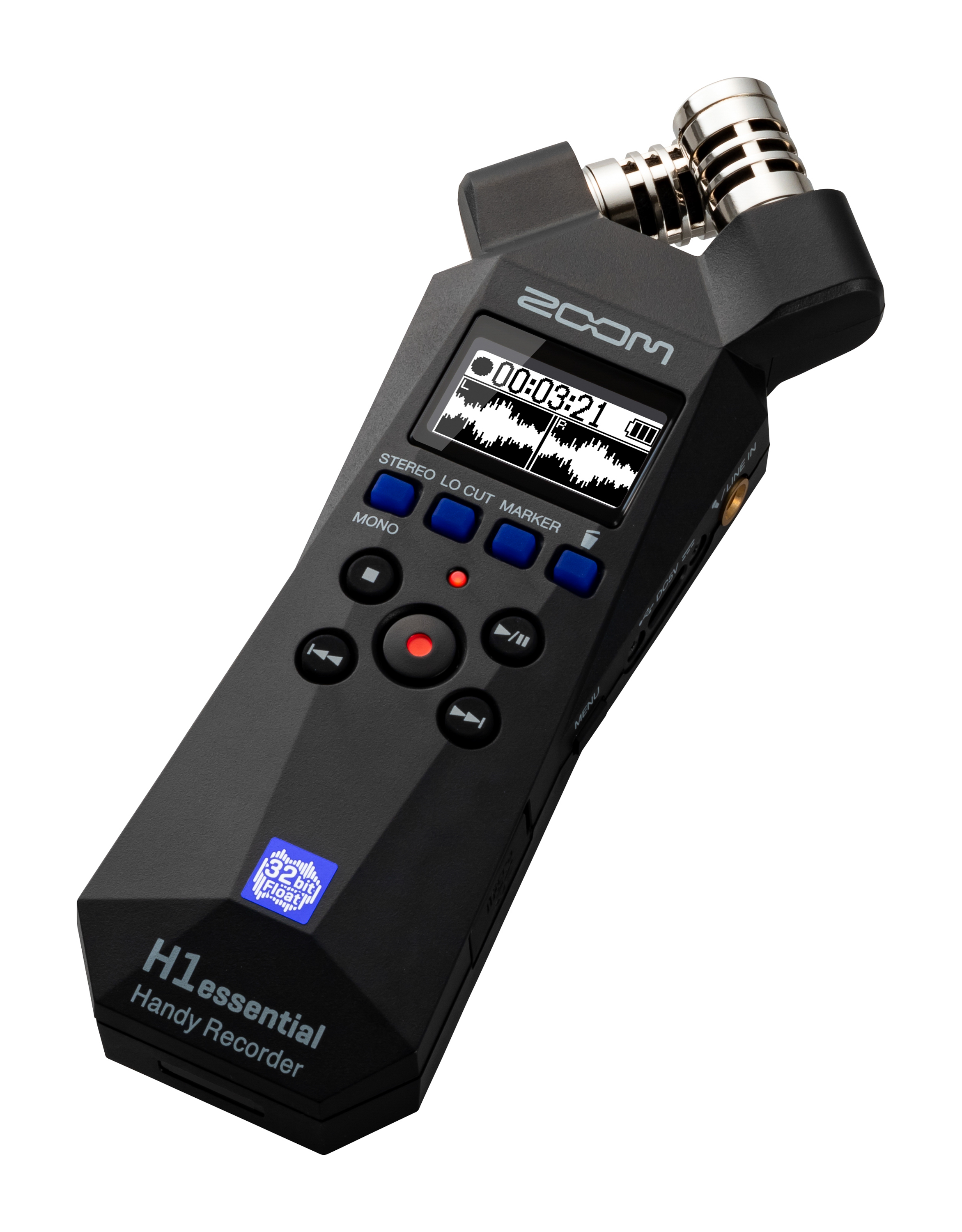

New H1 Essential - 2-track 32-bit floating-point recorder with X/Y microphones - Black Finish

This digital recorder provides two recording tracks (stereo track) equipped with two condenser microphones in X/Y configuration at an angle of 90° up to 120 dB SPL.

The recording format supports 32-bit floating-point WAV with sampling frequencies of 44.1/48/96 kHz.

The device features a 0.96-inch OLED screen for convenient navigation.
Lire la suite

Technical sheet

  • Inputs:

  • Channels: 2 (Built-in XY Mic)
  • Built-in Mic:

  • Mic Type: Unidirectional
  • Sensitivity: -37 dB, 1 kHz at 1 Pa
  • Input Gain: Unnecessary adjustment
  • Max Sound Pressure Input: 120 dB SPL
  • Configuration: 90° XY Stereo
  • Mic/Line In:

  • Connectors: 1/8" stereo mini jack
  • Input Gain: Unnecessary adjustment
  • Input Impedance: 2 kΩ or higher input impedance
  • Plug-in Power: Plug-in power (2.5 V) supported
  • Outputs:

  • Line Out/Phones:
  • Connector: 1/8" stereo mini jack
  • Combined LINE/HEADPHONE
  • Maximum Output Level: 20 mW +20 mW (32 Ω load)
  • Output Impedance: 10 kΩ or more
  • Built-in Speaker: 1W/8Ω mono speaker
  • Recording:

  • Recording Media: 4GB–32GB microSDHC cards, 64GB–1TB microSDXC cards (Not support SD card 2TB~)
  • Supported Formats: WAV, 44.1/48/96kHz, 32-bit float, mono/stereo, BWF and iXML
  • Display:
  • LCD: 0.96" monochrome OLED (128x64)
  • Power Supplies:

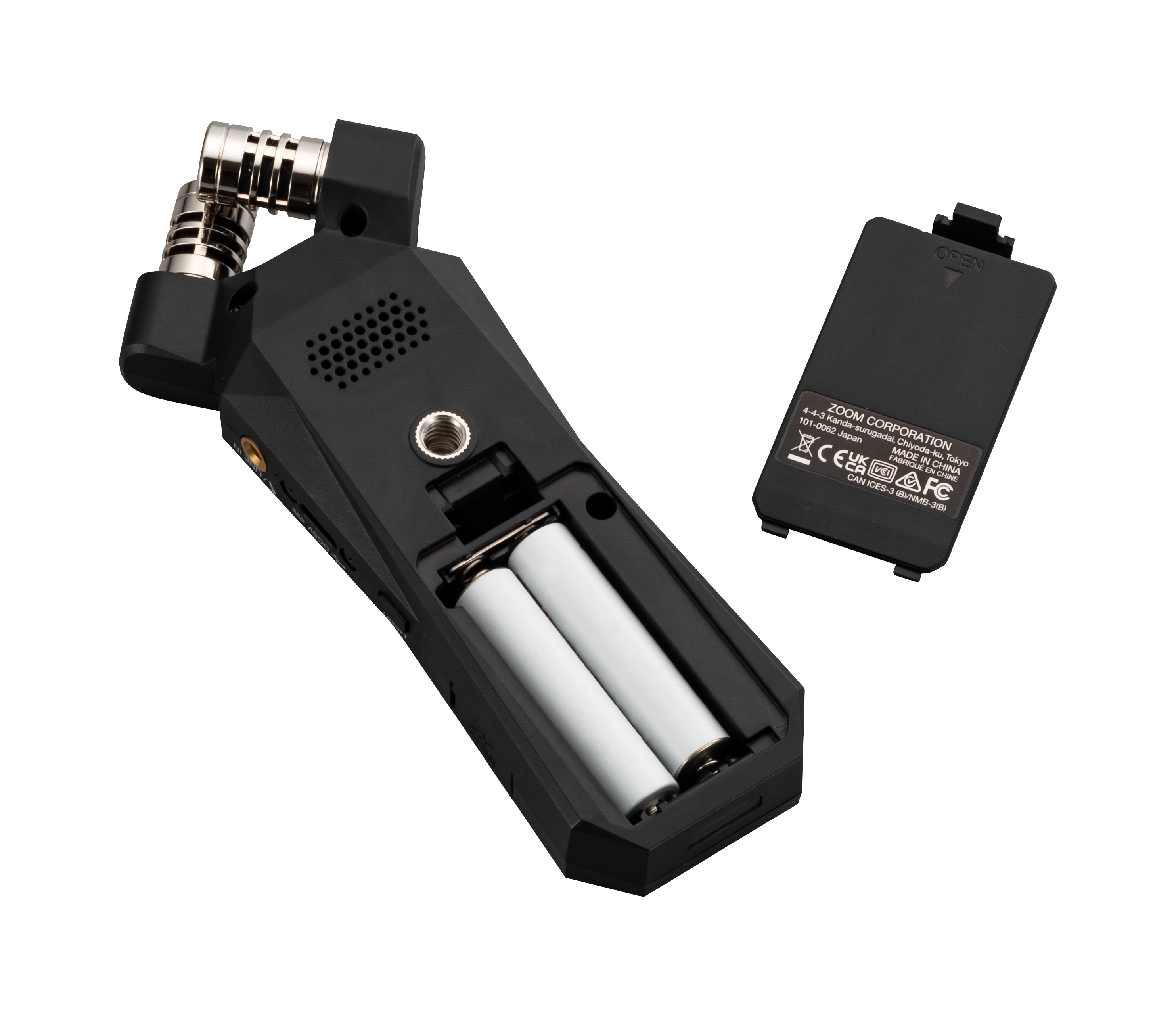

  • Batteries: 2 AAA (alkaline, NiMH, or lithium)
  • AC Adapter: ZOOM AD-17 (DC 5 V/1 A), USB bus power supported
  • USB:

  • Connector: USB Type-C
  • Mass Storage Class: USB 2.0 High Speed
  • Audio Interface with REC Class: USB class compliant, Transfer method: asynchronous
  • Sampling Rate: 48kHz
  • Bit Rate: 24-bit depth
  • Channels: 2 in/2 out
  • Estimated Continuous Operation Time Using Batteries:

  • 2ch recording to microSDHC card: Approximately 10 hours (alkaline batteries, using built-in mic, 48 kHz/32-bit float)
  • Option (Accessory Pack Includes):
  • Hairy Windscreen
  • ZOOM AD-17
  • USB Cable (Type-C)
  • Padded-Shell Case
