Portable recorder

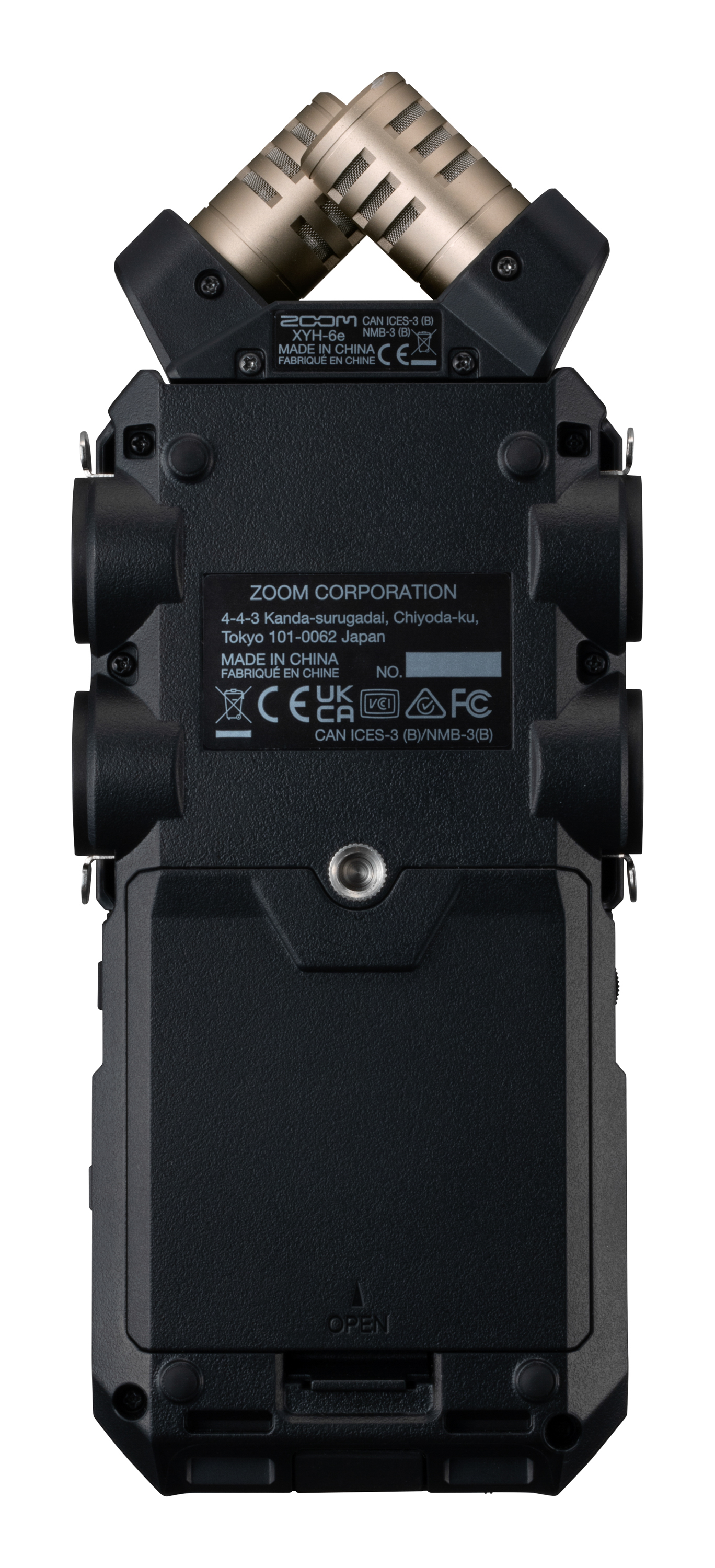

The new H6 Essential - 6-track 32-bit floating-point recorder - XYH-6e Microphone Capsule included - Black finish
This new 3.0 capsule system supports the 32-bit format, featuring the included XYH-6e capsule: two condenser microphones in X/Y configuration at 90°, providing a capture range of up to 135 dB SPL. Additionally, it offers a lateral Mic/Line input on a 3.5mm mini-jack, compatible with PiP power for lavalier microphones.
Recording is possible on Micro SDHC/micro SDXC cards up to 1TB.

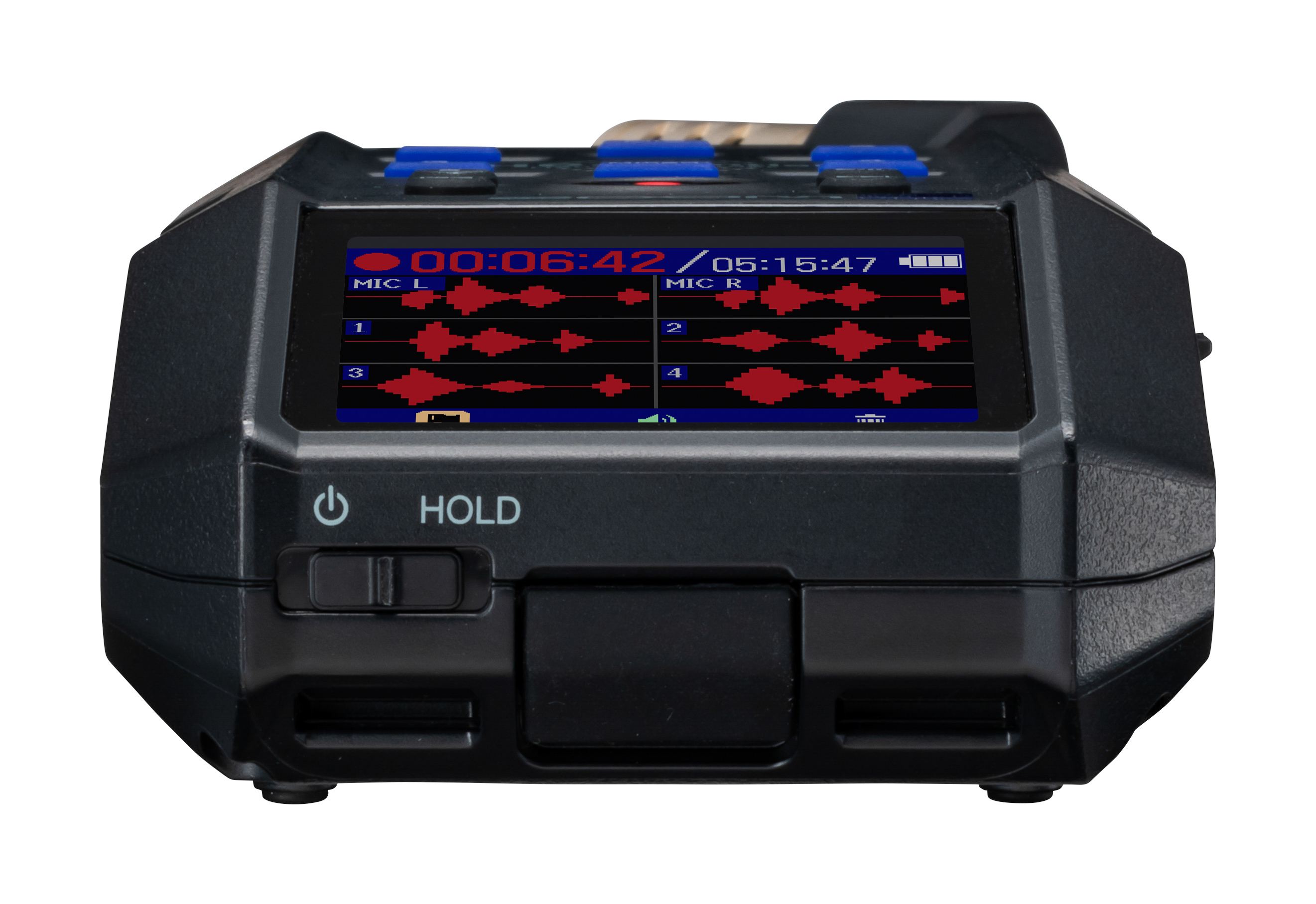

The device is equipped with a 2-inch LCD screen for easy navigation.
This new 3.0 capsule system supports the 32-bit format, featuring the included XYH-6e capsule: two condenser microphones in X/Y configuration at 90°, providing a capture range of up to 135 dB SPL. Additionally, it offers a lateral Mic/Line input on a 3.5mm mini-jack, compatible with PiP power for lavalier microphones.
Recording is possible on Micro SDHC/micro SDXC cards up to 1TB.
The device is equipped with a 2-inch LCD screen for easy navigation.
Lire la suite
Technical sheet
INPUTS
- CHANNELS: 2 (MIC Capsule) + 4 (XLR/TRS INPUTS)
MIC INPUT
- MIC TYPE: Unidirectional
- SENSITIVITY: -42 dB, 1 kHz at 1 Pa
- INPUT GAIN: Adjustment unnecessary (dual AD converter circuits used)
- MAX SOUND PRESSURE INPUT: 135 dB SPL
- XLR/TRS INPUTS
- CONNECTORS: XLR/TRS combo jacks (XLR: 2 HOT / TRS: TIP HOT)
- INPUT GAIN: Adjustment unnecessary (dual AD converter circuits used)
- INPUT IMPEDANCE: MIC: 3 kΩ or more, LINE: 3 kΩ or more
- MAXIMUM INPUT LEVEL: XLR: +4 dBu, TRS: +24 dBu
- PHANTOM POWER: +48V
- EQUIVALENT INPUT NOISE: ?120 dBu or less
OUTPUTS
- LINE OUT
- CONNECTOR: 1/8" stereo mini jack
- MAXIMUM OUTPUT LEVEL: +2 dBu
- HEADPHONE
- CONNECTOR: 1/8" stereo mini jack
- MAXIMUM OUTPUT: 20 mW + 20 mW (32 Ω load)
- BUILT-IN SPEAKER: 500mW/8Ω mono speaker
RECORDING
- RECORDING MEDIA: 4GB–32GB microSDHC cards, 64GB–1TB microSDXC cards
- SUPPORTED FORMATS: WAV, 44.1/48/96kHz, 32-bit float, BWF, and iXML
- MAXIMUM SIMULTANEOUS RECORDING TRACKS:
- 44.1/48kHz: 8 (2 MIC Capsule + 4 XLR/TRS INPUTS + 2 LR)
- 96kHz: 6 (2 MIC Capsule + 4 XLR/TRS INPUTS)
- DISPLAY: LCD, 2.00" full color (320 × 240)
POWER SUPPLIES
- BATTERIES: 4 AA
- AC ADAPTER: ZOOM AD-17 (DC 5 V/1 A), USB bus power supported
- USB
- CONNECTOR: USB Type-C
- MASS STORAGE CLASS: USB 2.0 High Speed
- AUDIO INTERFACE CLASS: USB 2.0 High Speed
- SAMPLING RATE: Multi Track mode: 44.1/48/96kHz, Stereo Mix mode: 44.1/48/96kHz
- BIT RATE: 24-bit/32-bit float
- CHANNELS: Multi Track mode: 6 in/2 out, Stereo Mix mode: 2 in/2 out
BTA-1
- Support (iOS App)
- ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES
- Alkaline batteries: about 18 hours, 48 kHz/32-bit float, Mic Capsule 2ch
