Dpa 4018A

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Dpa 4018a -  - Main picture
  • 2499.00 €
  • Ref : 117323
1899,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go

The brand Dpa

Learn more about the Dpa brand and discover the entire catalog.

Microphone buying guide

What microphone should you buy to record voice, guitar or drums? Everything is explained through this buying guide!

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Description

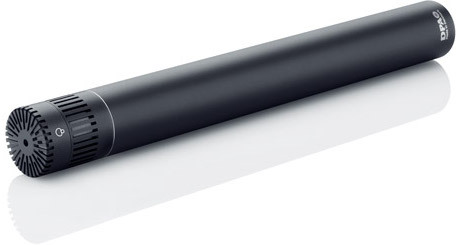

The 4018 supercardioid microphone has been designed for long-distance miking applications in broadcast, ENG and film, such as boom, dialogue, interviews and podiums.
Lire la suite

Technical sheet

  • Directivity
    • Supercardioid
  • Operating principle
    • Pressure gradient
  • Capsule type
    • Pre-polarized condenser
  • Frequency response
    • 20 Hz - 20 kHz
  • Effective range (±2 dB at 30 cm)
    • 40 Hz - 18 kHz
  • Sensitivity (nominal, ±2 dB at 1 kHz)
    • 12 mV/Pa; -38.4 dB re. 1 V/Pa
  • Equivalent noise level (A-weighted)
    • Typ. 16 dB(A) re. 20 µPa (max. 19 dB(A))
  • Equivalent noise level (ITU-R BS.468-4)
    • Typ. 23 dB (valid with attenuator at 0 dB or -20 dB)
  • Distortion (THD < 1%)
    • 134 dB SPL RMS, 137 dB SPL peak
  • Dynamic range
    • Typ. 121 dB
  • Max. SPL level (THD 10%)
    • 156 dB SPL peak
  • Switchable attenuator / filters
    • 0 dB / -20 dB
  • Nominal output impedance
    • 200 Ω
  • Minimum load impedance
    • 2 kΩ
  • Cable capacity
    • 100 m (328 ft)
  • Balanced output principle
    • Impedance balancing with active control
  • Common-mode rejection ratio (CMRR)
    • > 60 dB
  • Power supply (for full performance)
    • P48 (phantom power)
  • Current consumption
    • 2.8 mA
  • Connector
    • XLR-3M (Pin 1: ground, Pin 2: signal + phase, Pin 3: - phase)
  • Weight
    • 158 g (5.6 oz)
  • Microphone diameter
    • 19 mm (0.75 in)
  • Capsule diameter
    • 19 mm (0.75 in)
  • Microphone length
    • 170 mm (6.7 in)
  • Maximum output voltage (RMS)
    • 8 V
  • Polarity
    • +V on pin 2 for positive acoustic pressure
  • Temperature range
    • -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH)
    • Up to 90% RH
  • Matching tolerance (frequency response and sensitivity)
    • ±1 dB
  • Phase deviation (stereo kit)
    • < 10°
  • Polar diagram
    • Supercardioid
