Dpa 4488-DP-R-B90

839,00 €

Not available at this moment

Stock in store

Not available in store

INFORM ME OF ITS ENTRY IN STOCK

I want to be notified by email

Variation(s) of this product.

The brand Dpa

Learn more about the Dpa brand and discover the entire catalog.

Discover

Find all the information on our superstores and our specialized boutiques.

find out more

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

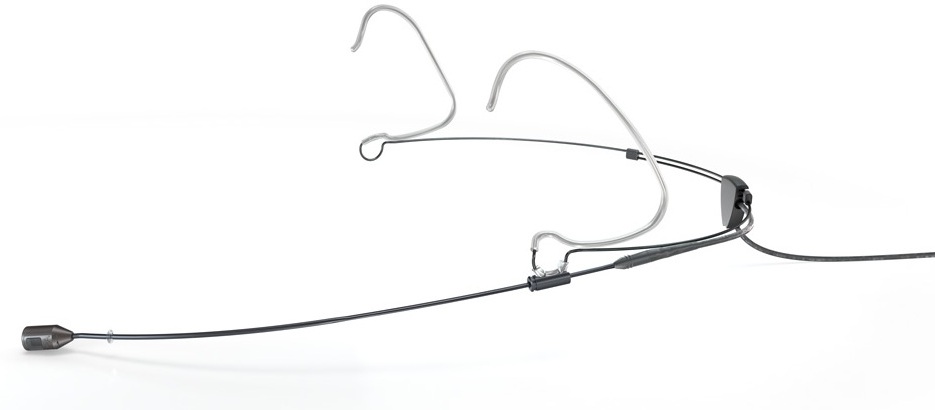

Directional headset CORE+ 4488, Black, MicroLock

Directivity
- Cardioid
Operating principle
- Pressure gradient
Capsule type
- Pre-polarized condenser
Frequency response
- 20 Hz - 20 kHz
Sensitivity (nominal, ±3 dB at 1 kHz)
- 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level (A-weighted)
- Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level (ITU-R BS.468-4)
- Typ. 38 dB (max. 40 dB)
Distortion (THD < 1%)
- 134 dB SPL RMS, 137 dB SPL peak
Dynamic range
- Typ. 111 dB
Max. SPL level (THD 10%)
- 144 dB SPL peak
Nominal output impedance
- 30 - 40 Ω
Cable capacity
- Up to 300 m (984 ft) with XLR adapter DAD6001-BC
Power supply (for full performance)
- For wireless systems: 5 V min. - 10 V max. via DPA adapter
- With DAD6001-BC: P48 (phantom power), operates from 12 V
Current consumption
- Typ. 1.5 mA (microphone)
- 3.5 mA with XLR adapter DAD6001-BC
Connector
- MicroDot
Weight
- 12 g (0.4 oz) with cable and MicroDot connector
Microphone diameter
- 5.4 mm (0.21 in)
Cable length
- 1.3 m (4.3 ft) long
Cable diameter
- 1.6 mm (0.06 in)
Polarity
- Positive increase in sound pressure produces positive voltage on MicroDot pin
Temperature range
- -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
- Up to 90% RH
Colors
- Black
- Beige
- Brown
Polar diagram
- Cardioid
