Headset microphone

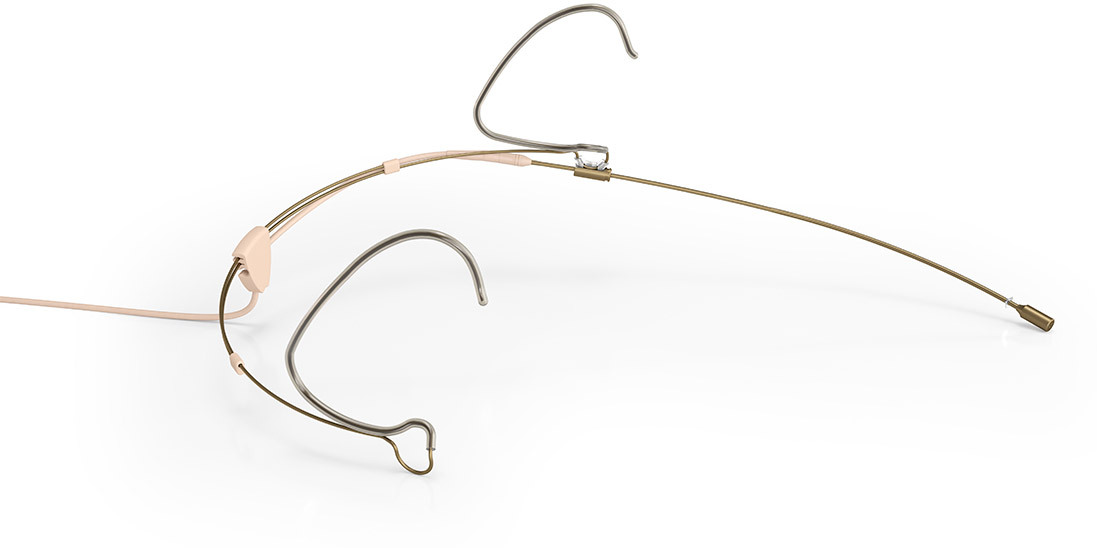

Submini CORE 6066 Omni headband, Beige, MicroLock.
The capsule of the 6066 CORE submini headband microphone measures just 3 mm (0.12 in.) in diameter, but it contains all the audio power of DPA's larger, award-winning microphones.
The capsule of the 6066 CORE submini headband microphone measures just 3 mm (0.12 in.) in diameter, but it contains all the audio power of DPA's larger, award-winning microphones.
Lire la suite
Technical sheet
- Microphone connector Other connectors
- Type of microphone Electrostatic
- Directivity
- Omnidirectional
- Operating principle
- Pressure
- Capsule type
- Pre-polarized capacitor
- Frequency response
- 20 Hz - 20 kHz
- RMS frequency range (±2 dB)
- 40 Hz - 20 kHz with gentle 4 dB boost between 8 and 20 kHz
- Nominal sensitivity (±2.4 dB at 1 kHz)
- 6 mV/Pa; -44 dB re. 1 V/Pa
- Equivalent noise level, A-weighted
- Typ. 26 dB(A) re. 20 ?Pa (max. 28 dB(A))
- Distortion (THD < 0.5%)
- 122 dB SPL RMS, 125 dB SPL peak
- Distortion (THD < 1%)
- 125 dB SPL RMS, 128 dB SPL peak
- Dynamic range
- Typ. 102 dB
- Max. SPL level (THD 10%)
- 144 dB SPL peak
- Nominal output impedance
- From MicroDot: 30 - 40 Ω; From DAD6001-BC: 100 Ω
- Cable capacity
- Up to 300 m (984 ft) with DAD6001-BC XLR adapter
- Power supply (for optimum performance)
- For wireless systems: min. 5 V - max. 10 V via DPA adapter
- With DAD6001-BC: P48 (phantom power), operates from 12 V
- Power consumption
- Typ. 1.5 mA (microphone); 3.5 mA with XLR adapter DAD6001-BC
- Connectors
- Microlock, TA4F Mini-XLR, LEMO 3-pin, mini-jack
- Weight
- 11 g (0.40 oz) including cable and Microlock connector
- Mic head size (H x W x D)
- 3.4 x 8.9 mm (0.13 x 0.35 in)
- Capsule diameter
- 3 mm (0.12 in)
- Cable length
- 1.3 m (4.3 ft)
- Polarity
- Increasing sound pressure produces positive voltage on MicroDot pin
- Temperature range
- -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH)
- Up to 90% RH
- Colors
- Beige
