Multieffect for electric guitar

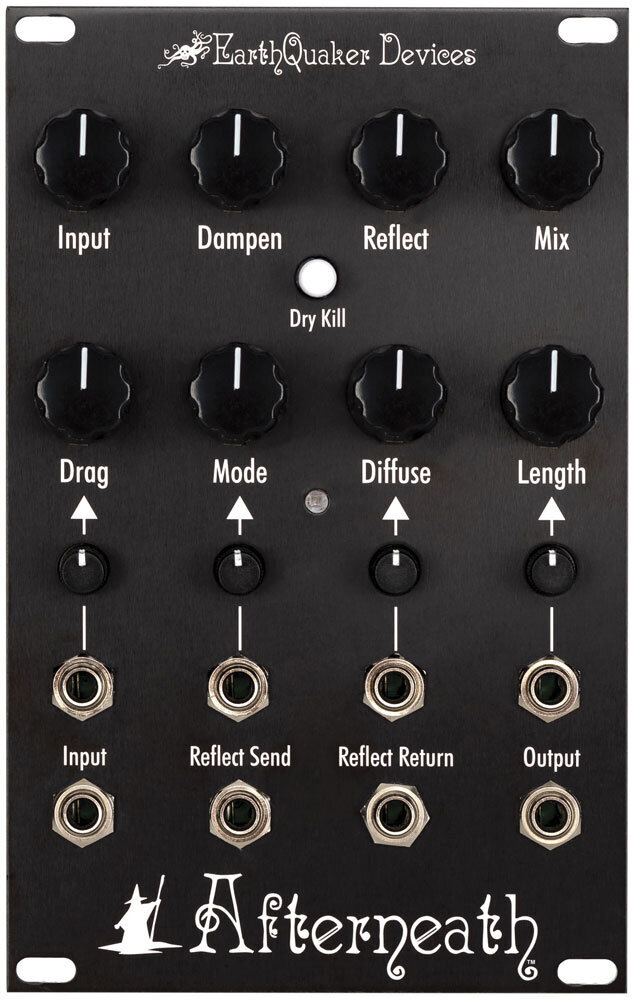

The Afterneath Eurorack Module brings the otherworldly sounds from the effects pedal world right into your modular synthesizer with an expanded feature set. The Afterneath Module features one main audio input, one main audio output, an audio send and return for the Reflect feedback path, and nine controls.
Four of the parameters are controllable via CV, and each has been equipped with a dedicated inverting attenuator. The Afterneath module has a completely analog dry signal path and a totally digital wet signal path. The Afterneath Module further expands upon our wildly popular Afterneath pedal with the addition of voltage control over the Diffuse, Length and Drag controls.
Four of the parameters are controllable via CV, and each has been equipped with a dedicated inverting attenuator. The Afterneath module has a completely analog dry signal path and a totally digital wet signal path. The Afterneath Module further expands upon our wildly popular Afterneath pedal with the addition of voltage control over the Diffuse, Length and Drag controls.
Lire la suite
Technical sheet
- Ranges from scattered individual delays to an immersive wash of atmospheric reverb
- New voltage control over the Drag parameter with 9 unique modes of user-selectable sweep: Unquantized, Unquantized with Slew, Unquantized Volt/Octave, Chromatic, Major, Minor, Pentatonic, Octaves & Fifths, Octaves
- Features audio send and return for the Reflect feedback path
- Drag, Mode, Diffuse, and Length parameters are controllable via CV, each with dedicated inverting attenuators
- Features Dry Kill switch to eliminate the dry signal from the output, leaving only the wet signal
- Capable of pseudo-stereo operation by using the Reflect Send as an additional output
- All analog dry signal path and a totally digital effect signal path
- Lifetime guarantee
- Current Draw: 95 mA from the +12v rail, 0 mA from both the -12v and +5v rails
- Width: 16HP
- Max Depth: 31.75 mm
