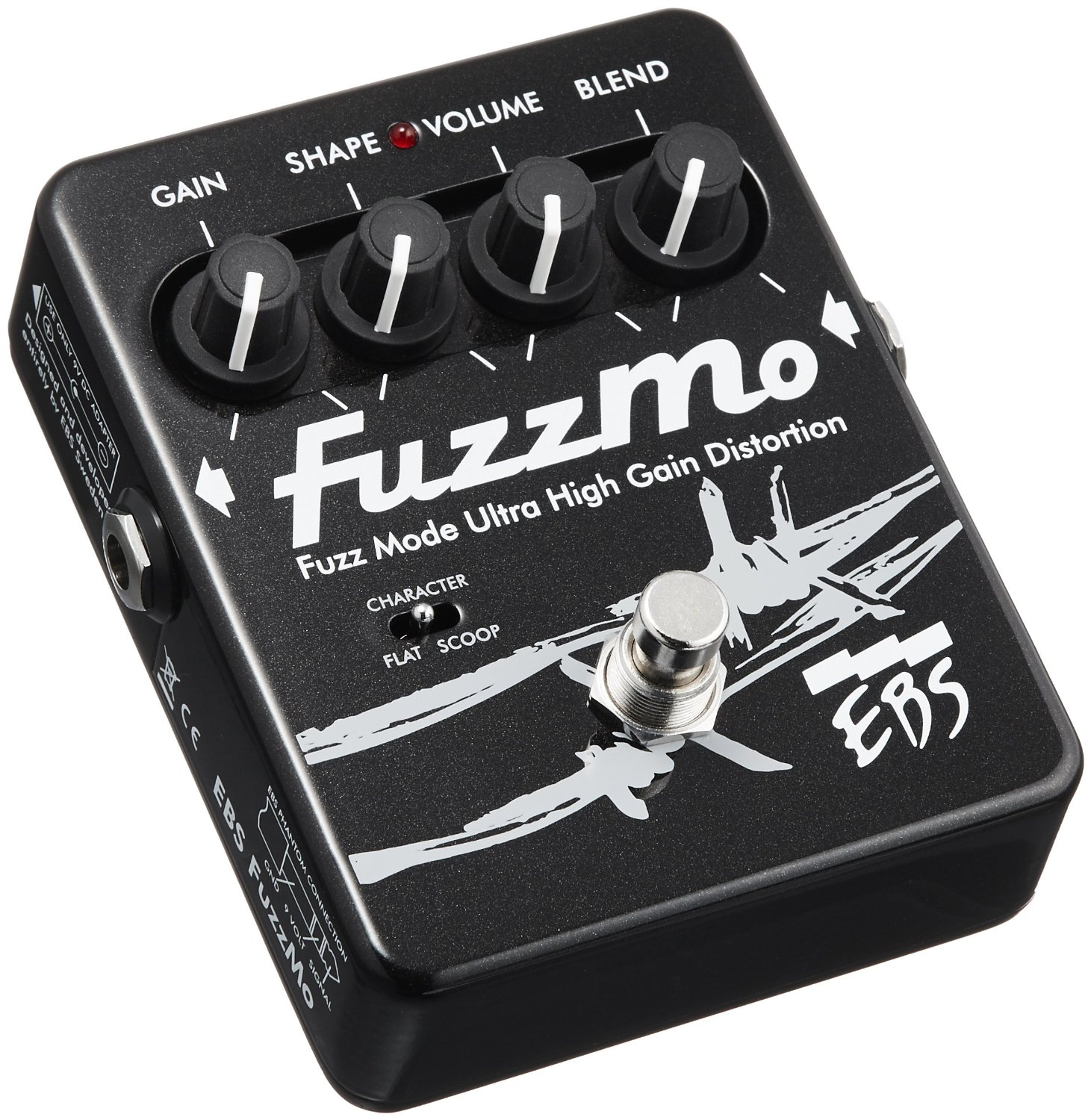

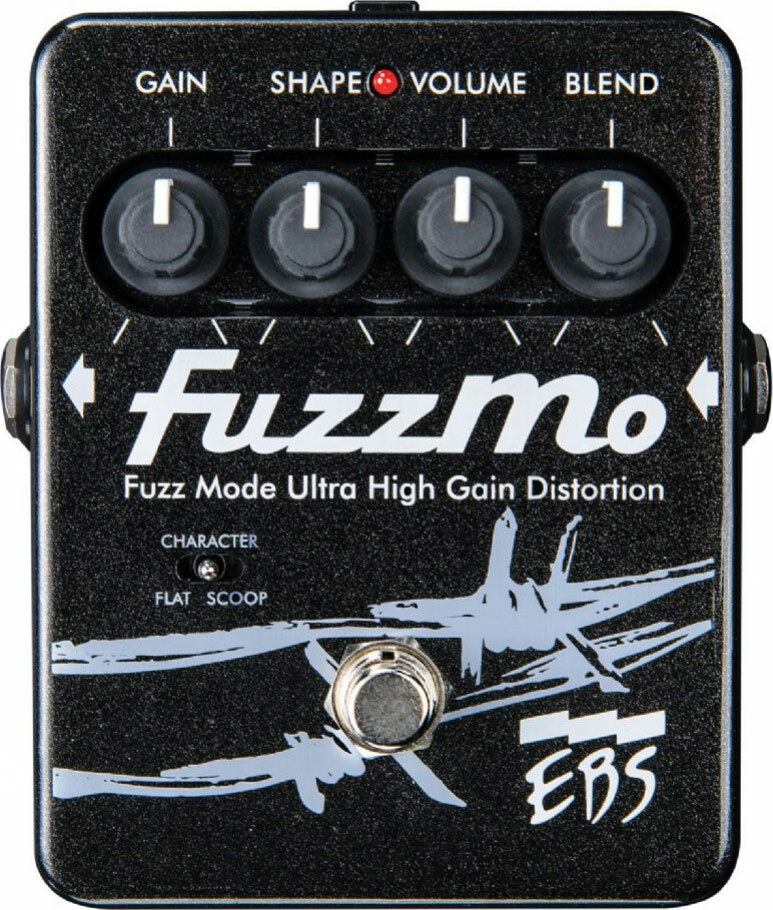

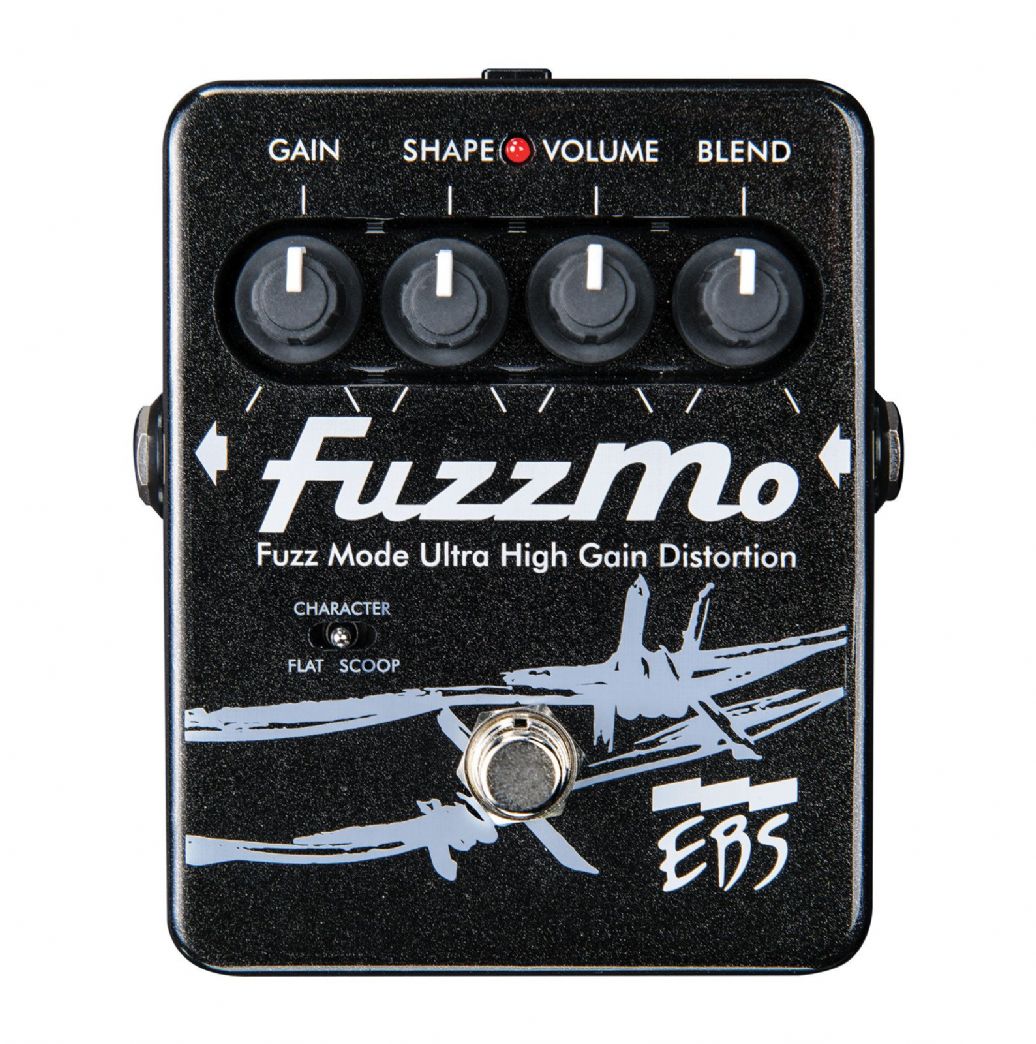

Overdrive, distortion, fuzz effect pedal for bass
THE EBS FUZZMO PEDAL IS A FUZZ EFFECT FOR BASS. THE PEDAL PRODUCE A WIDE RANGE OF VINTAGE AND MODERN EFFECTS WITH SEVERAL FEATURES TO DIAL-IN YOUR FAVOURITE FUZZ TONE.
Blending possibilities. Similar to the Billy Sheehan Signature Drive, you can blend the fuzz tone with a clean signal. Fire up the distortion engine gain as much as you like with the 'Gain' control, set the 'Volume' for the distortion and then blend in the clean unaffected tone by turning up the 'Blend' control. Instead of a tone control, the EBS FuzzMo features a 'Shape' control that changes the shape of the gain engine, from triangle to square wave through the passive tone stack.
Character filter. If the controls does not offer enough flexibility, this pedal also feature a 'Character' filter. This goes in three steps from Flat, to subtle mid-scoop, to maximum mid-scoop (or cut).
True bypass. The EBS FuzzMo uses a True Bypass footswitch. The pedal runs on 9V DC battery or Power Supply.
Blending possibilities. Similar to the Billy Sheehan Signature Drive, you can blend the fuzz tone with a clean signal. Fire up the distortion engine gain as much as you like with the 'Gain' control, set the 'Volume' for the distortion and then blend in the clean unaffected tone by turning up the 'Blend' control. Instead of a tone control, the EBS FuzzMo features a 'Shape' control that changes the shape of the gain engine, from triangle to square wave through the passive tone stack.
Character filter. If the controls does not offer enough flexibility, this pedal also feature a 'Character' filter. This goes in three steps from Flat, to subtle mid-scoop, to maximum mid-scoop (or cut).
True bypass. The EBS FuzzMo uses a True Bypass footswitch. The pedal runs on 9V DC battery or Power Supply.
Lire la suite
Technical sheet
- Type Analog Effect
- Gain, Shape, Volume and Blend controls.
- Three Scoop modes, Flat, Subtle and Max
- True bypass switching
- Nominal Input Level - 8 dBv
- Input Impedance 900 kohms
- Output Impedance < 100 ohms
- Gain Range 25 - 65 dB
- Shape Filter Passive HP/LP
- Mid scoop 0 / -6 dB @ 300 Hz
- Blend bandwith +0/-3 dB 20 - 20k Hz
- Power requirements* 9-12 V DC Regulated, 7 mA @ 9V
- 9V DC (Battery or Power Supply)
- Optional (not included): EBS AD-9 Power Supply
- Dimensions W x H x D 3.5" x 4.5" x 1.4" (90 x 115 x 35 mm)
- Weight 480g (1.07 lb.)
