Preamp
Lire la suite
Technical sheet
- Type of preamp Transistor
- Single Channel, Class A, '73-style British Microphone Preamp with EQ
- UK made Carnhill Transformers
- UK made - Blore Edwards EQ dual-concentric switch potentiometers

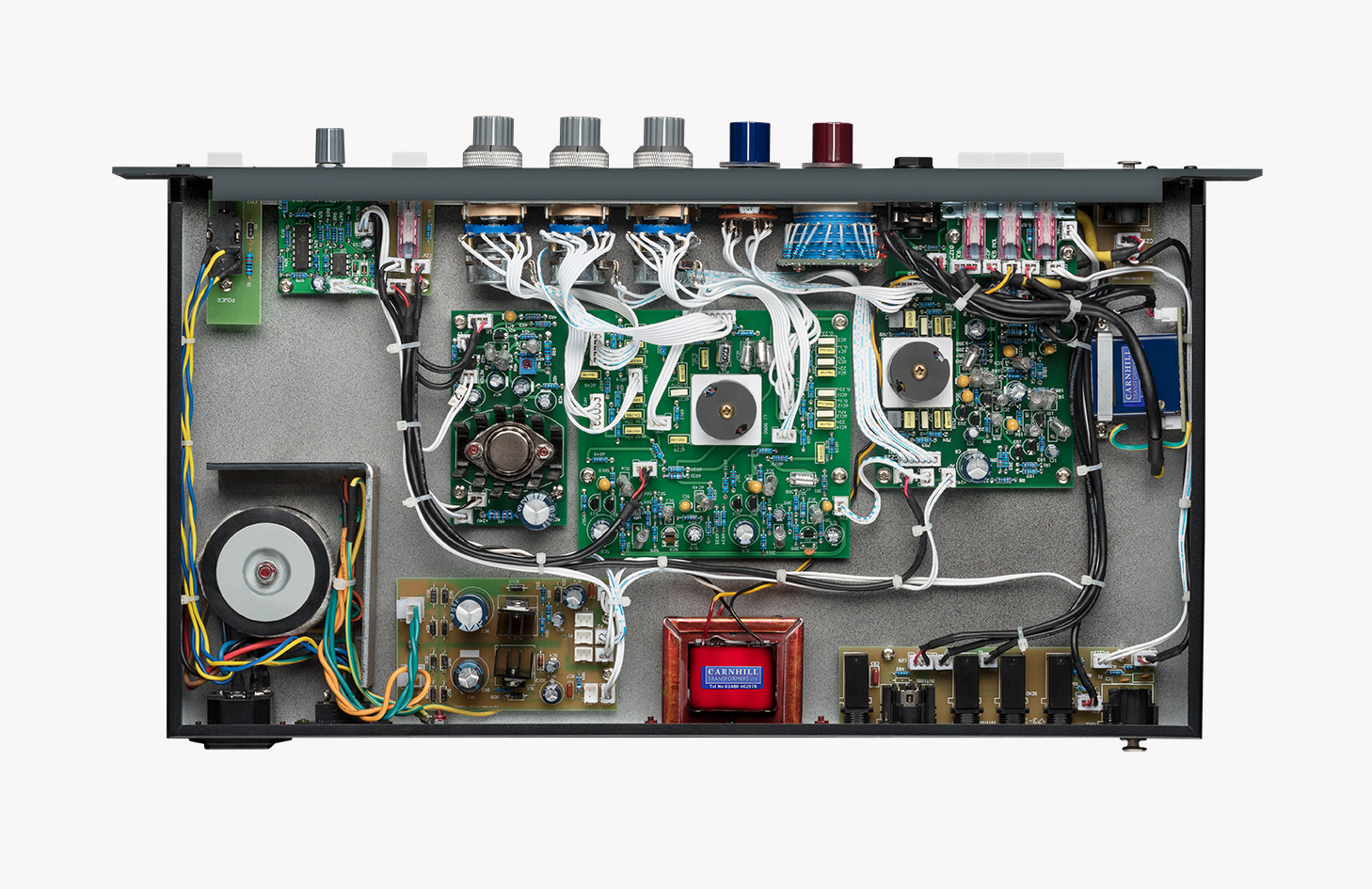

- Hand Wired, hand assembled
- 80dB of gain - resistor stepped gain switch
- Fully discrete
- TONE button - Changes input transformer impedance for varying tone
- Polarity switch
- 48v phantom power
- Inductor based 3 band EQ
- Low Band Boost/Cut - 35, 60, 110, 220 Hz
- Mid Band Boost/Cut - 360, 700, 1600, 3200, 4800, 7200 Hz
- High Band Boost/Cut - 10, 12, 16 kHz
- Additional high band frequency EQ points added (compared to vintage 1073)
- 4 position inductor based hipass filter - 50, 80, 160, 300 Hz
- XLR mic inputs (front & back)
- Line level TRS input
- TS Send/Receive insert jacks
- XLR & TRS line level outputs
- Direct In, instrument input
- Output control
- Led level indication
- Freq response 20Hz - 20kHz +/-.5 dB
- 19" rackable
- Internal IEC 115v/230v power inlet
