Elysia Museq

Name: Museq
Brand: Elysia
SKU: 61885
Availability: OutOfStock

4390,00 €

Not available at this moment

Stock in store

Not available in store

INFORM ME OF ITS ENTRY IN STOCK

I want to be notified by email

The brand Elysia

Learn more about the Elysia brand and discover the entire catalog.

Discover

Find all the information on our superstores and our specialized boutiques.

find out more

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

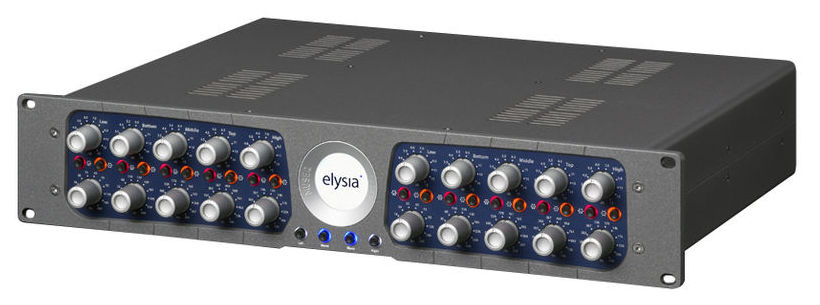

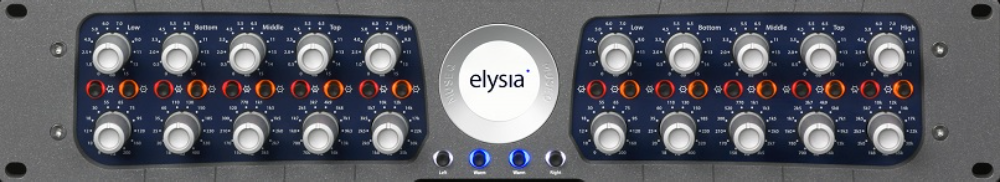

Equalizer in rack ELYSIA Museq.

Frequency response: <10 Hz - >200 kHz (-0.2 dB)
Low Band (Shelf Filter): 9 - 200 Hz (+/-15 dB)
Low Band (Cut Filter): 9 - 200 Hz
Bottom Band (Peak Filter): 18 - 400 Hz (+/-15 dB)
Quality factor (Q): 1.3 (wide) and 0.5 (narrow)
Middle Band (Peak Filter): 150 Hz - 3.5 kHz (+/-15 dB)
Quality factor (Q): 1.3 (wide) and 0.5 (narrow)
Top Band (Peak Filter): 700 Hz - 16 kHz (+/-15 dB)
Quality factor (Q): 1.3 (wide) and 0.5 (narrow)
High Band (Shelf Filter): 1.8 - 35 kHz (+/-15 dB)
High Band (Cut Filter): 1.8 - 35 kHz
THD+N @ 0 dBu, 20 Hz - 22 kHz: 0.0037 %.
THD+N @ +10 dBu, 20 Hz - 22 kHz: 0.0038 % Background Noise, 20 Hz - 22 kHz: 0.0038
Noise floor, 20 Hz - 20 kHz (A-weighted): -91.6 dBu
Dynamic range, 20 Hz - 22 kHz: 119 dB
Maximum input level: +27 dBu
Maximum output level: +27 dBu
Input impedance: 10 kOhm
Output impedance: 68 Ohm

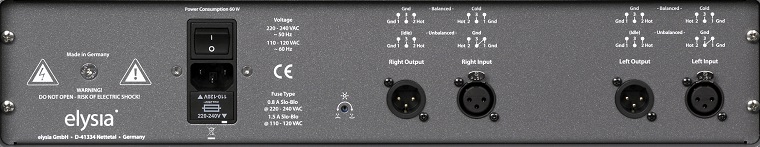

Input terminal assignment: 1. ground (GND) - 2. positive or hot spot (+) - 3. negative or cold spot (-)
Output terminal assignment: 1. ground (GND) - 2. positive or hot (+) - 3. with 68 Ohm to ground (GND)
Power consumption: 60 W
Fuse type: 230 VAC 0,8 A Slo-Blo - 115 VAC 1,6 A Slo-Blo
Dimensions (W x H x L): 483 mm x 89 mm x 377 mm - 19 " x 3,5" (2 U) x 14,8"
Weight: 8 kg / 17.5 lb
