Analog mixing desk

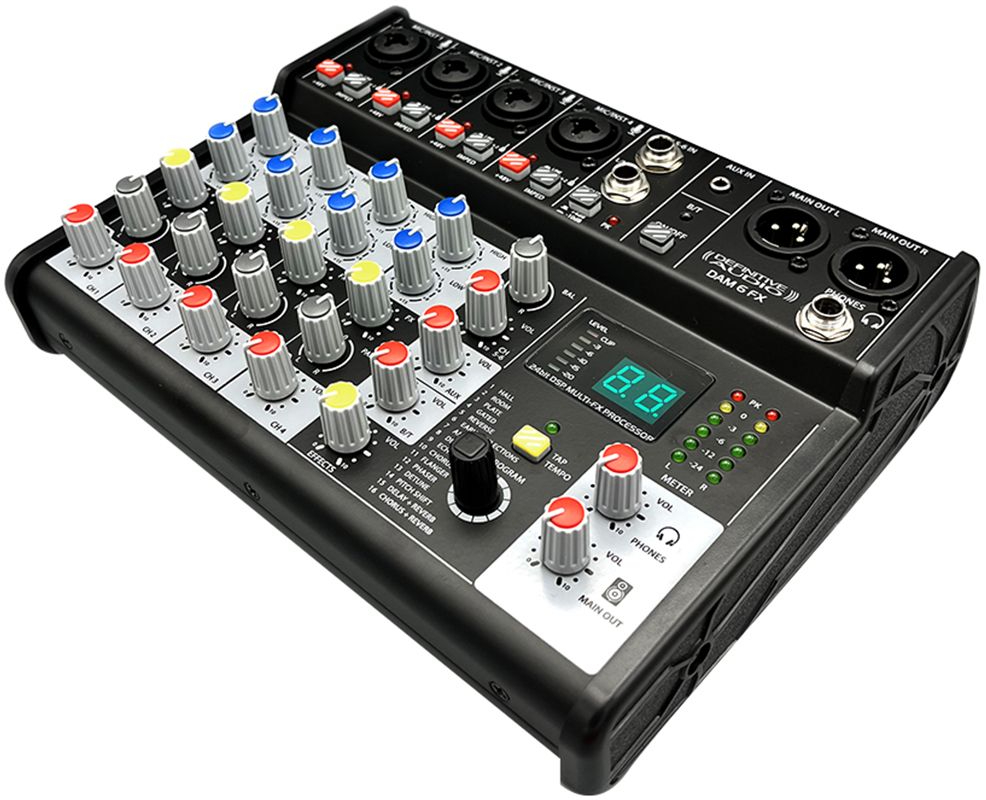

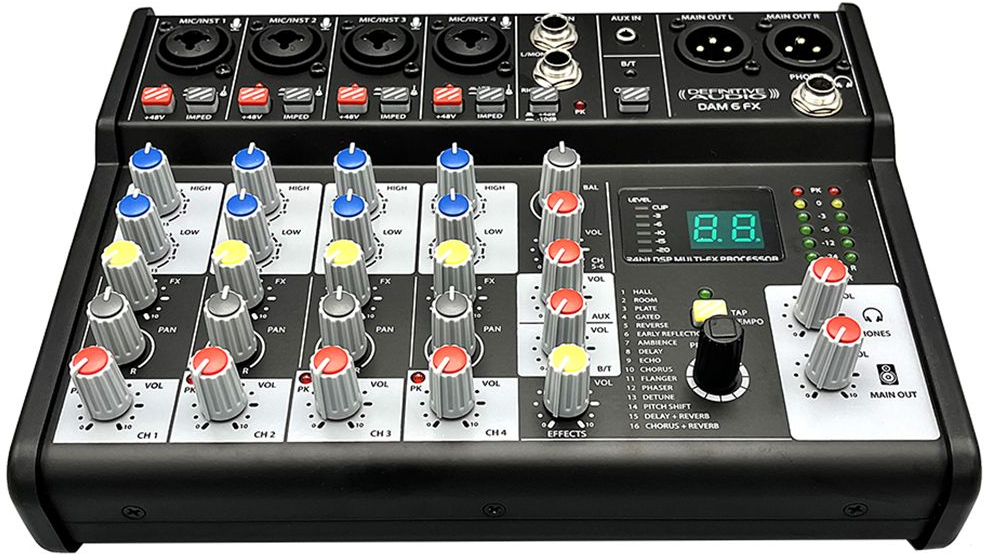

The Definitive Audio DAM 6FX is a 6 channel mixer with effects.

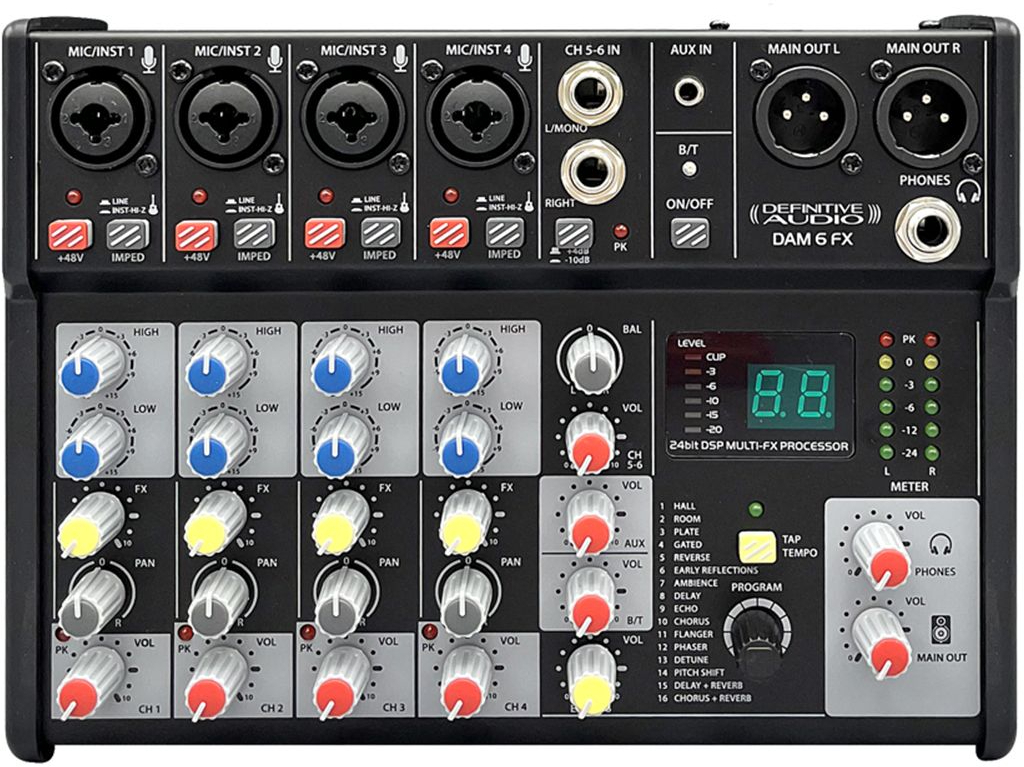

The DAM 6 FX is a 7 channel analogue mixer, including 4 XLR/Jack 6.35mm inputs, a stereo input on Jack 6.35mm, an AUX input on Jack 3.5mm Stereo and a Bluetooth receiver. The mic preamps are of the highest quality to give you the best possible performance. It is equipped with a digital multi-effects with 16 presets including the main effects needed for classic use.
The DAM 6 FX is a 7 channel analogue mixer, including 4 XLR/Jack 6.35mm inputs, a stereo input on Jack 6.35mm, an AUX input on Jack 3.5mm Stereo and a Bluetooth receiver. The mic preamps are of the highest quality to give you the best possible performance. It is equipped with a digital multi-effects with 16 presets including the main effects needed for classic use.
Technical sheet
- Mixer connectivity Without computer connection
- Number of channel mixing desk 6 and 8 channels
- Number of channels 6 channels
- 7-channel mixer
- Inputs: 4 XLR/Jack combos, 2 mono 6.35mm jacks, 1 AUX 3.5 jack
- Integrated Bluetooth receiver
- Outputs: 2 x XLR male and 1 x 6.35mm headphones
- Gain : -14 - + 40dB
- Eq 2 bands 80Hz and 12KHz +/- 15dB
- +48V with LED indicator
- Selector switch: Mic/line
- LED saturation indicator
- Stereo channel
- Adjustable sensitivity
- Adjustable balance
- LED saturation indicator
- General level indicator: 2 x 6 LEDs (4 green, 2 yellow and 2 red)
- Max output level : 3 Vrms
- Frequency response +/- 0.5 dB : 20 - 20000Hz
- Dynamic range : 102 dB
- THD: <0.03%.

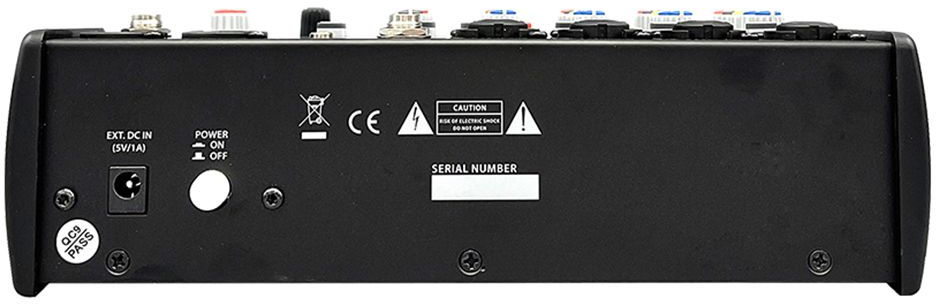

- Power supply : DC 5V, 1A
- Power consumption : Max 5W
- Dimensions : 220 x 66 x 165mm
- Weight : 1,17 Kg
More specifications
Fewer specifications
