Definitive audio DA MX4 USB

  • Read reviews (0)
  • Related accessories
  • Similar products

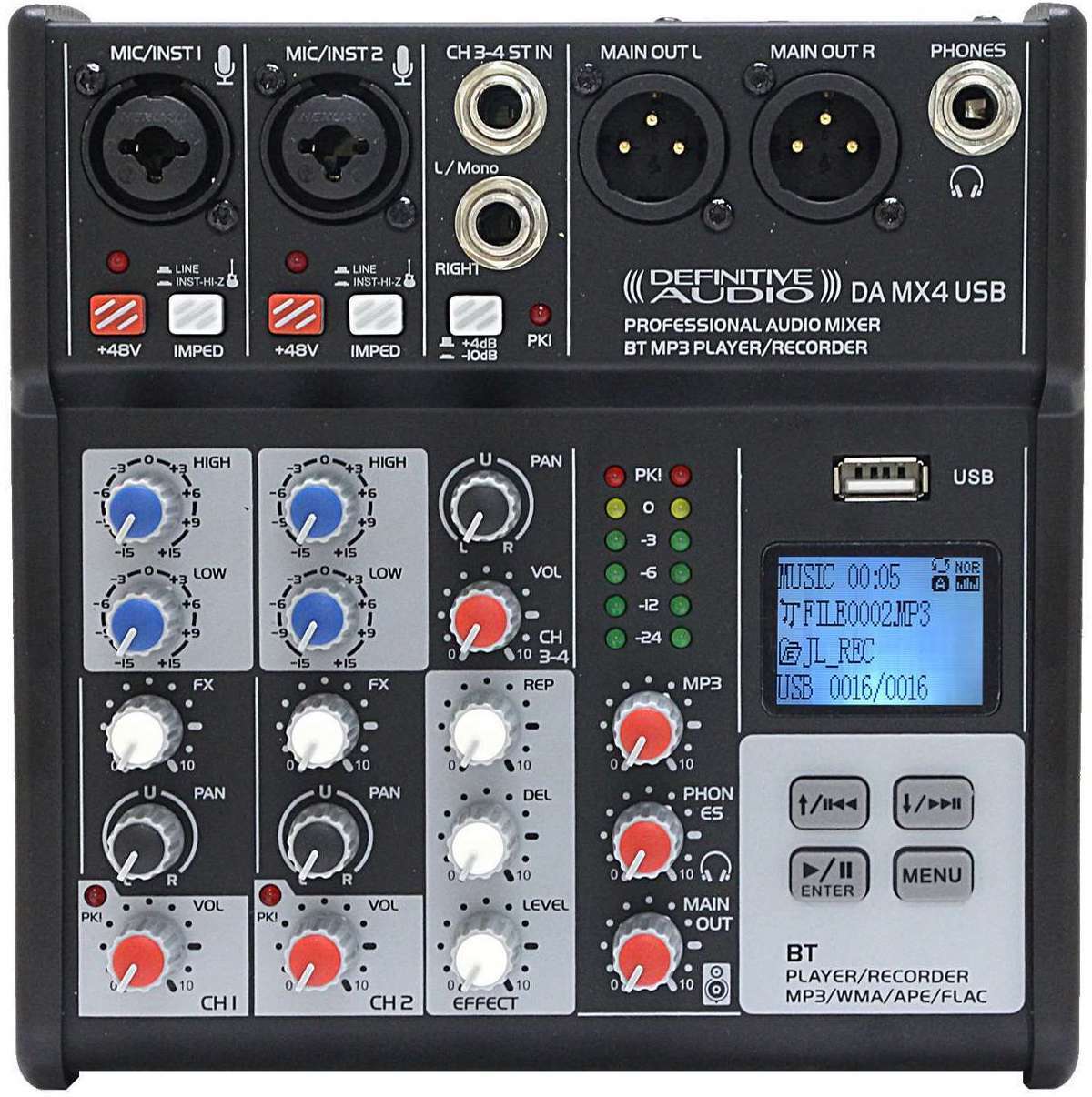

  • Definitive Audio Da Mx4 Usb - Analog mixing desk - Main picture

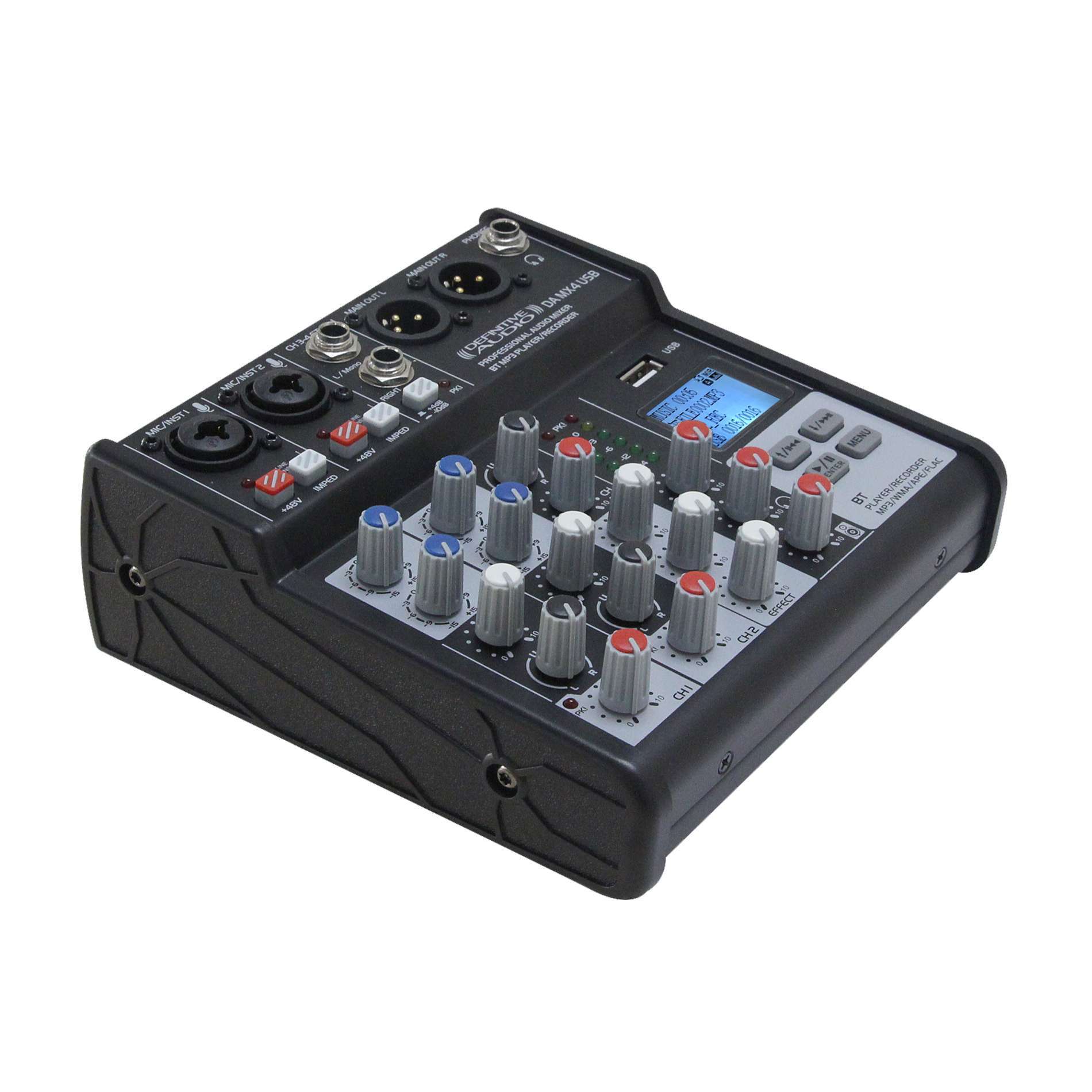

  • Definitive Audio Da Mx4 Usb - Analog mixing desk - Variation 1

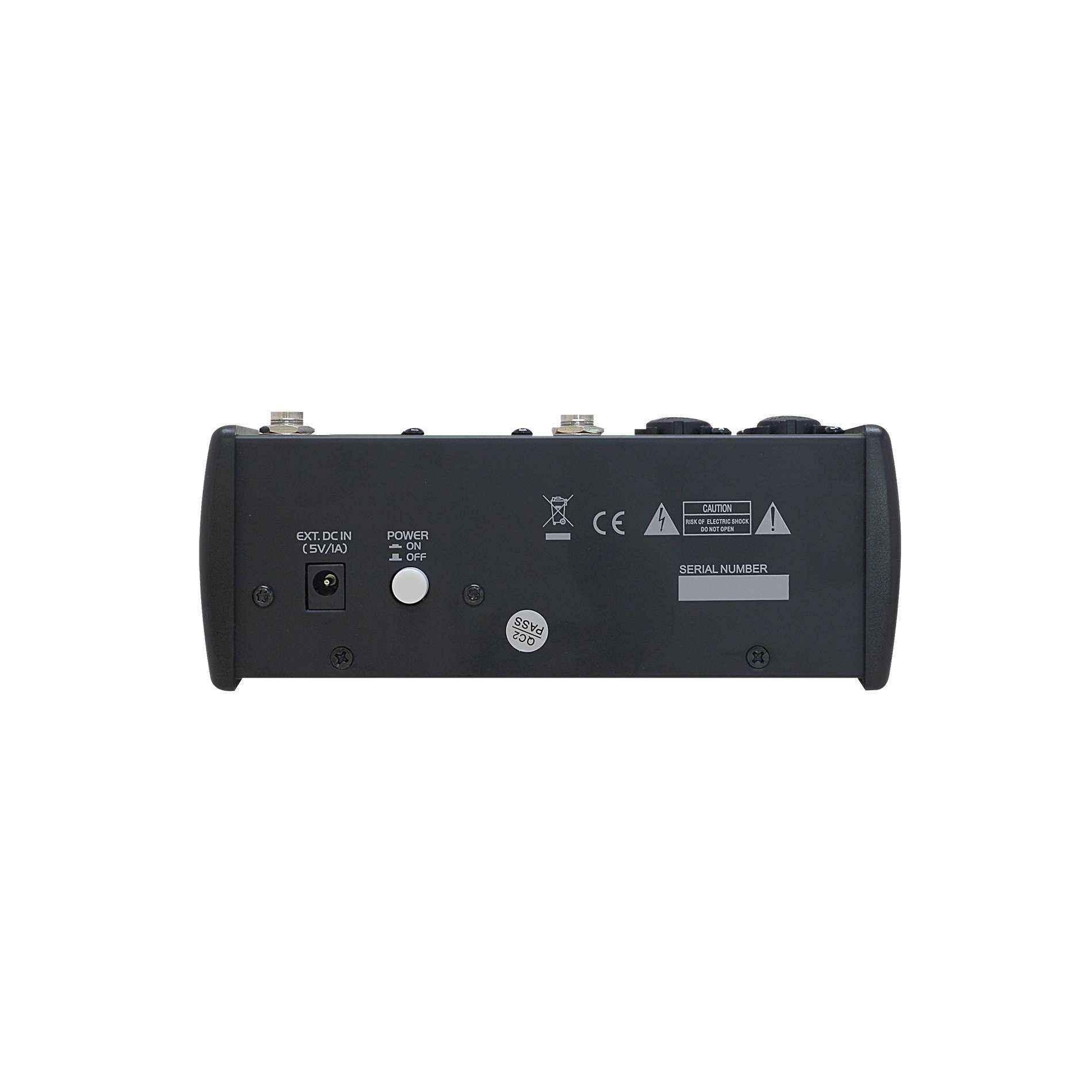

  • Definitive Audio Da Mx4 Usb - Analog mixing desk - Variation 2

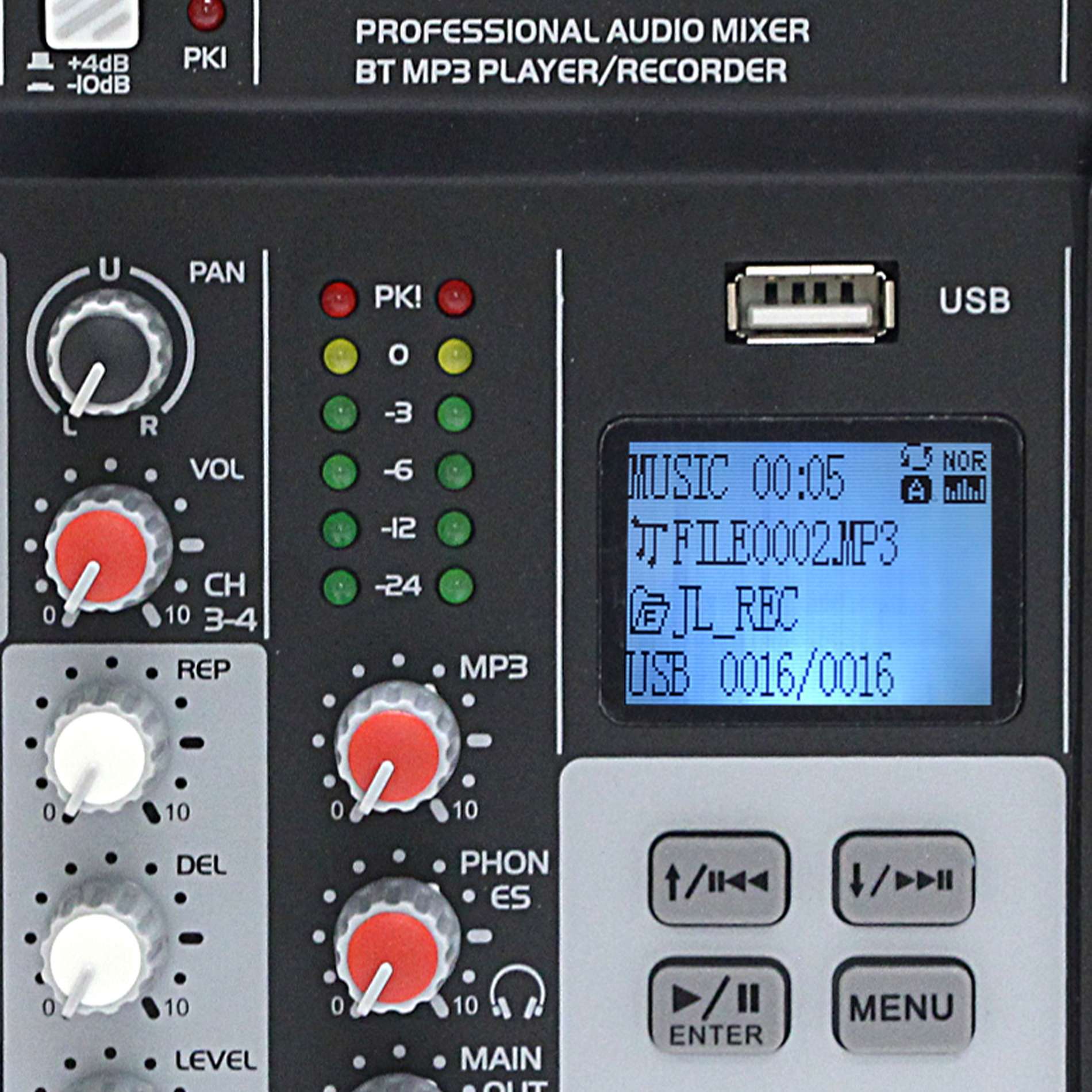

  • Definitive Audio Da Mx4 Usb - Analog mixing desk - Variation 3
89.00 €
79,00 €
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 87801
In stock
shipped under 2/3 days
Stock in store
See availability. Store
•
Star's Music Bordeaux
•
Star's Music Toulouse
Other version(s) or associated product(s)

The brand Definitive audio

Learn more about the Definitive audio brand and discover the entire catalog.
Logo Definitive audio

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Analog mixing desk

The DaMX4 usb is a 3-channel mixer from Defintive Audio.

The DA MX 4 USB is a 3-channel analog mixing console, including 2 XLR/Jack 6.35mm combo inputs and a stereo input on 6.35mm jack. The microphone preamps are of very high quality to offer you impeccable performance. It is equipped with a very complete multimedia reader/recorder for a very modern use.
Lire la suite

Technical sheet

  • Mixer connectivity USB
  • Number of channel mixing desk 4 channels and less
  • 3-channel mixer
  • Inputs: 2 XLR/Jack combos and 2 mono 6.35mm Jacks
  • Outputs: 2 x XLR male and 1 x 6.35mm headphones
  • Mono channels 1 and 2 :
  • Gain: -14 - + 40dB
  • Eq 2 bands 80Hz and 12KHz +/- 15dB
  • 48V with indicator per led
  • Selector switch: Microphone/line
  • Led saturation indicator
  • Stereo channel
  • Adjustable sensitivity
  • Adjustable scale
  • Led saturation indicator
  • General level indicator: 2 x 6 LEDs (4 green, 2 yellow and 2 red)
  • Max output level: 3 Vrms
  • Frequency response +/- 0.5 dB : 20 - 20000Hz
  • Dynamic: 102 dB
  • THD: <0.03%
  • Power supply: DC 5V, 1A
  • Power consumption: Max 5W
  • Dimensions: 166 x 66 x 66 x 165mm
  • Weight: 0,89 Kg
