Ld systems VIBZ 24 DC

Read reviews (0)

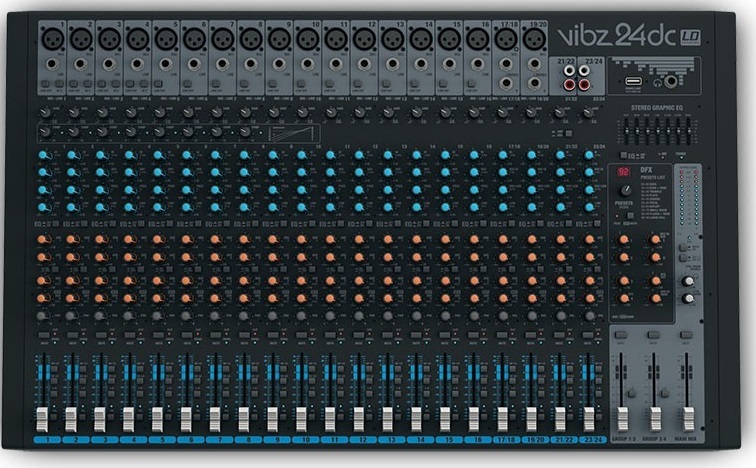

  • Ld Systems Vibz 24 Dc - Analog mixing desk - Main picture

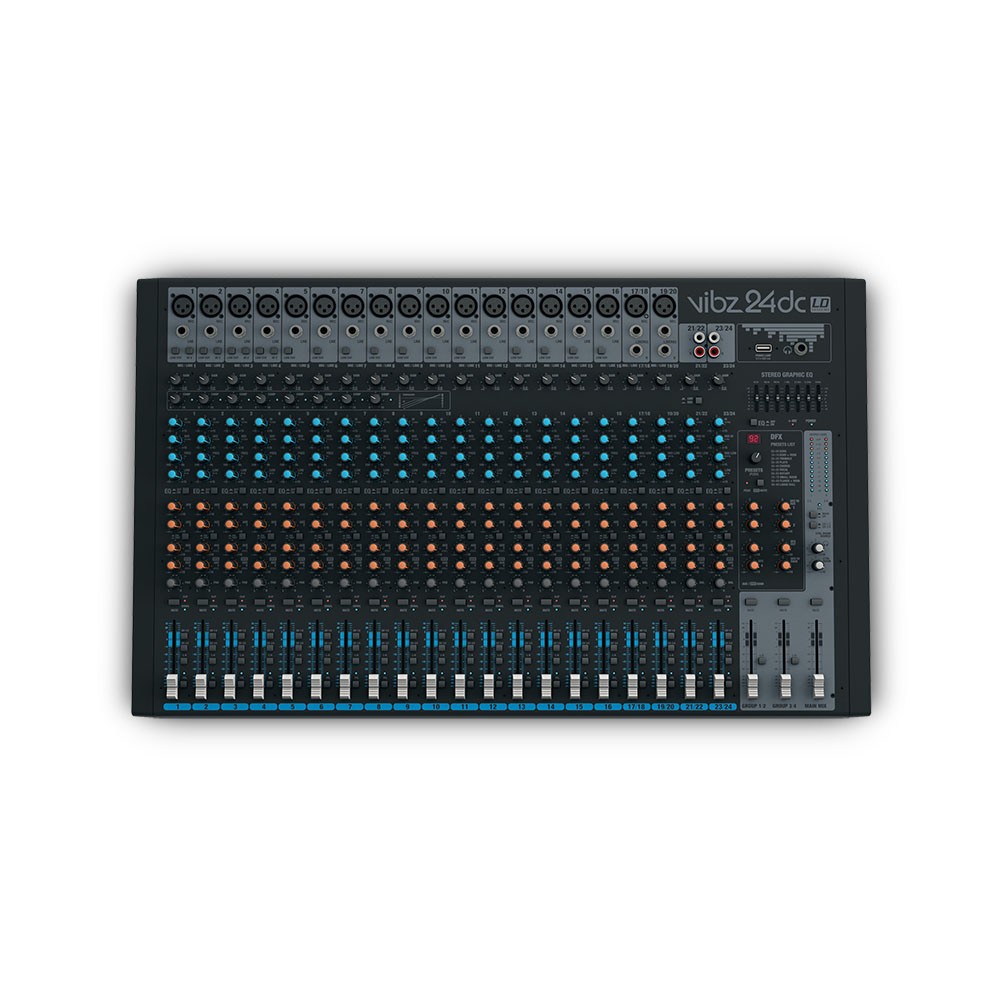

  • Ld Systems Vibz 24 Dc - Analog mixing desk - Variation 1

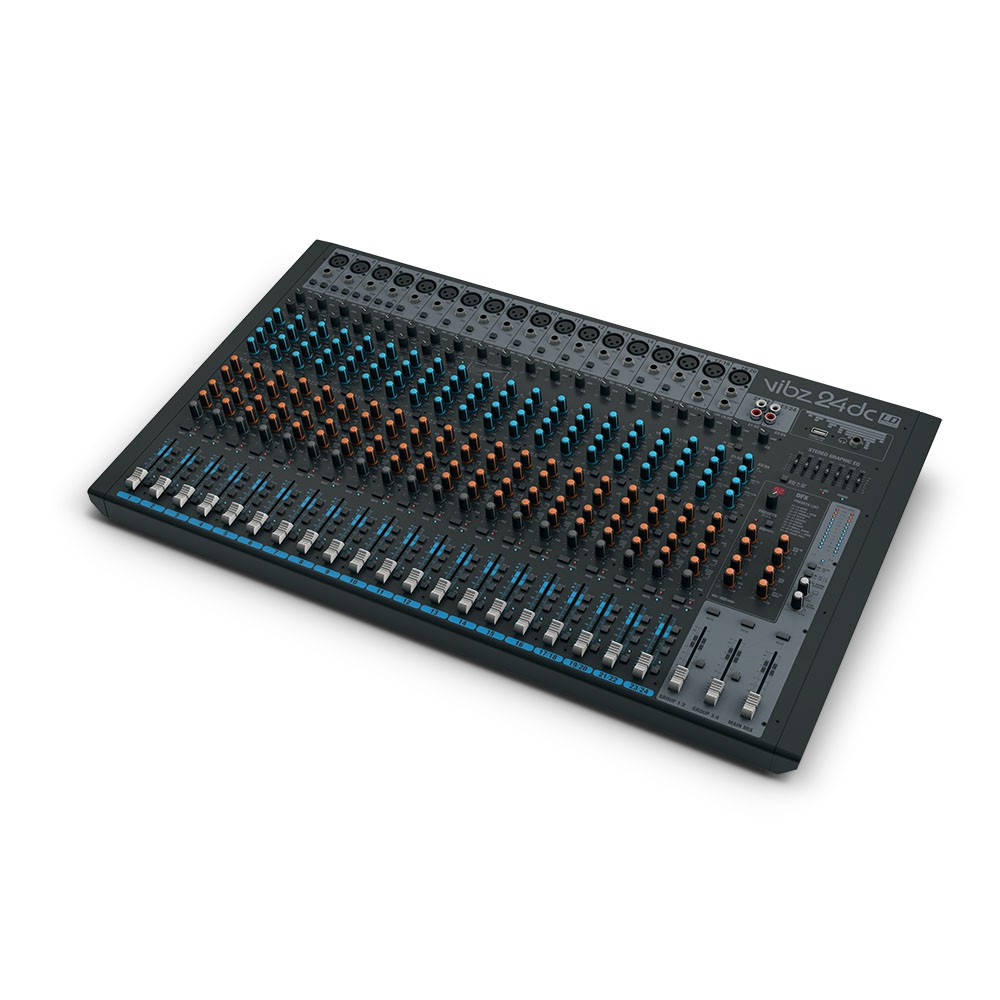

  • Ld Systems Vibz 24 Dc - Analog mixing desk - Variation 2

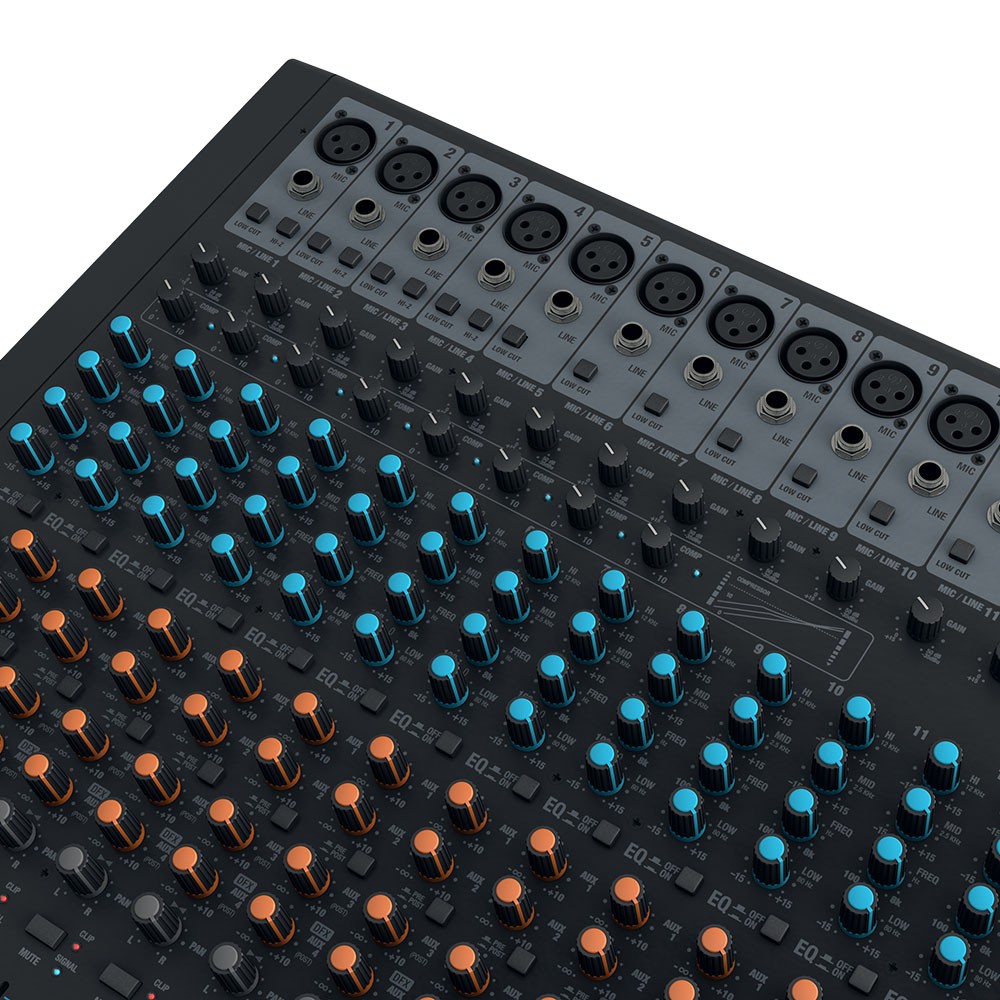

  • Ld Systems Vibz 24 Dc - Analog mixing desk - Variation 3

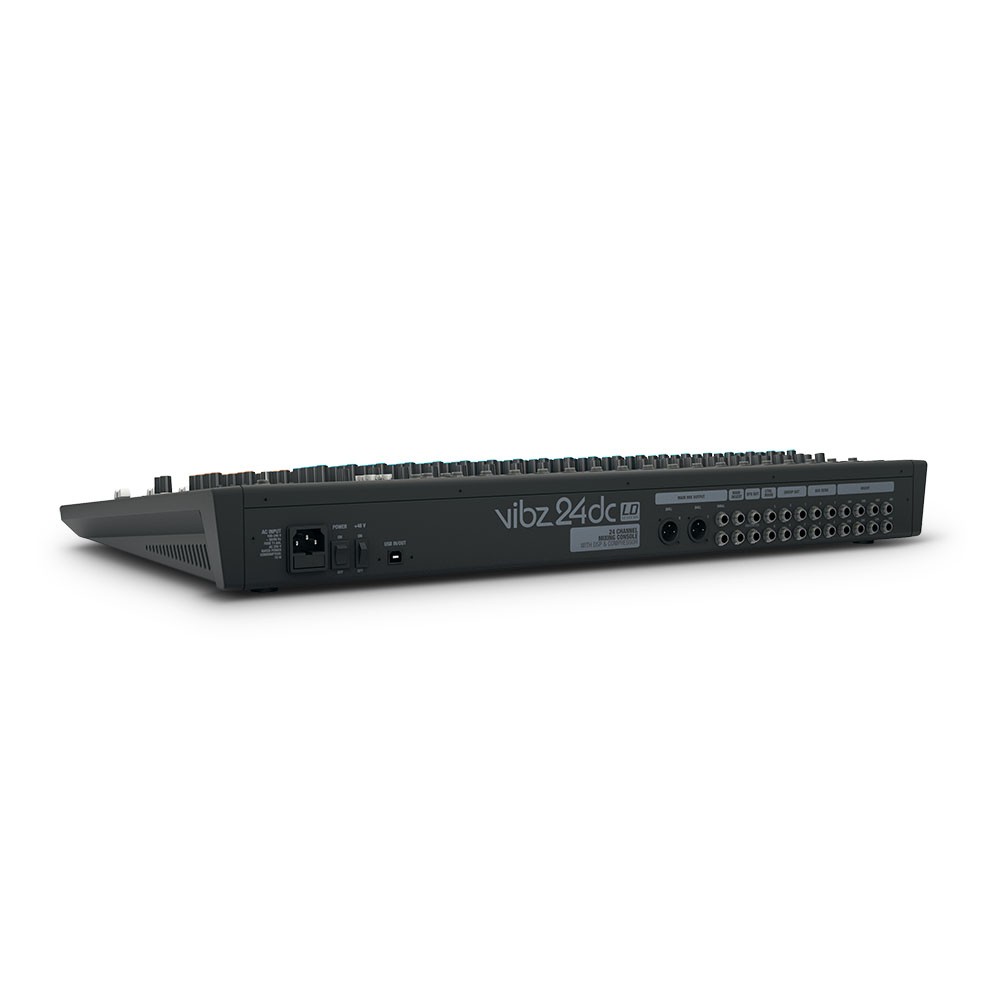

  • Ld Systems Vibz 24 Dc - Analog mixing desk - Variation 4
628,00 €
Free delivery
Low prices guaranteed
Satisfied or refunded
3-years warranty
In stock
shipped under 8/10 days
Stock in store
Not available in store
Other version(s)
Contact an expert

Analog mixing desk

The Ld Systems VIBZ 24 Dc is a 24 channel mixer with integrated effects and compressor.

The VIBZ 24 DC is a high-end model from the VIBZ series, designed to deliver superb audio quality in home studio and live applications. It offers 16 mono channels equipped with a 3-band equalizer (with semi-parametric midrange), 4 stereo channels with 4-band equalizer, 4 subgroups, a 24-bit digital multi-effect with 100 presets and progressive-action audio faders , a race of 65 mm.

All channels have high quality mic preamps with gain potentiometer, 4 aux sends, a Mute, PFL key and signal assignment buttons, as well as signal presence and clipping LEDs. Two of the sends are switchable before / after fader, for use for backstage or effect loop. The XLR mic inputs and TRS jack line of the mono channels have electronic symmetry; Channels 1 through 8 have a single potentiometer for compressor tuning, and external device insertion points.

The Master section includes balanced and unbalanced overhead outputs and separate outputs for groups, with precise level visualization, plus a monitor and headphone output with volume controls, and a global 7-band graphic equalizer. The VIBZ 24 DC is equipped with a universal mains power supply, accepting mains voltage between 100 and 240 volts.

SPECIFICATIONS

  • Ref : 83437
  • - Mixer connectivity : usb
  • - Number of channel mixing desk : 24 channels and more
  • - Product type Mixing consoles
  • - Type Home studio, Live
  • - Number of Inputs 24
  • - Microphone
  • - Mic / Line 16 mono input channels
  • - Mono Input Jacks Micro Jack 6.35mm Stereo, XLR
  • - Mono Micro Symétrei electronic input type
  • - Mono microphone input frequency response 10 - 45000 Hz
  • - Mono microphone input gain values ??0 - 50 dB
  • - Harmonic distortion rate (THD) mono microphone input 0.0058%
  • - Mono microphone input impedance 4000 Ohm (s)
  • - Signal / noise ratio mono microphone input 113 dB
  • - Mono input type Symétrei electronic line
  • - Mono line input frequency response 10 - 45000 Hz
  • - Mono line input gain values ??0 - 50 dB
  • - Harmonic distortion rate (THD) mono line input 0.0045%
  • - Mono line input impedance 21000 Ohm (s)
  • - Signal / noise ratio mono line input 116 dB
  • - Mono channel corrector +/- 15 dB @ 12.000 Hz
  • - Acoustic corrector mono channel 200 - 8000
  • - Mono corrector +/- 15 dB @ 80 Hz
  • - Mono / AUX Send Aux 1-2 Line Input (AUX2 switchable pre / post), AUX Send 3-4 (post), Bal, 3 Band EQ (High, Mid, Low), elector routing fader (Group) controls 1/2, Group 3/4, Main L + R), Channel fader, Gain, LINE / USB selector (channels 21 - 24), PFL / Solo selector
  • - Phantom power 48 V switchable DC voltage
  • - Number of Mono Insertion Points 8
  • - 1/4 "Mono Jack Insertion Point Connectors
  • - Stereo channels:
  • - Stereo Line Input Channels 4
  • - Stereo Line Jack Stereo Input Connectors
  • - Asymmetric stereo line input type, Electronic Symetry
  • - Stereo line input frequency response 10 - 45000 Hz
